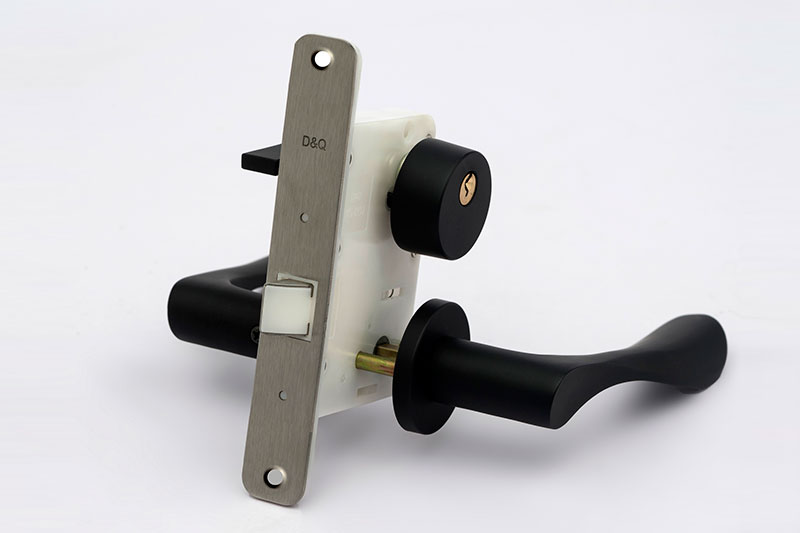

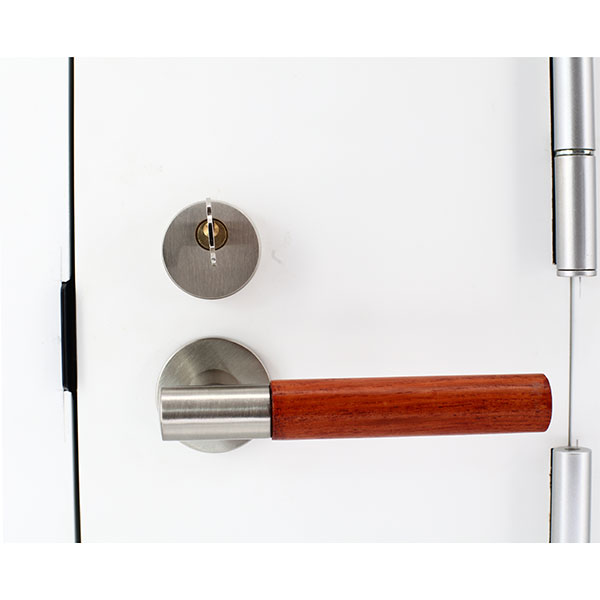

MPF1614 Series Door Handle Lock

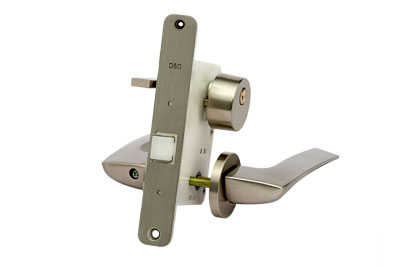

MPF1614 Door Handle Lock

Features

This model of mortise lever lock is designed with a brass cylinder and key. It is suitable for places with security requirements. The lock body shell is made of POM and the handle is made of aluminum alloy to ensure the firmness of the lock. Compared with other models of locks, this model has a higher strength and a better security. The bolt is made of plastic POM and stainless steel to reduce noise and ensure a better mute effect. The surface treatment adopts Japanese advanced technology. Various tests are carried out in accordance with Japanese JIS standards to ensure the durability of the lock both from the appearance and structure.

Color

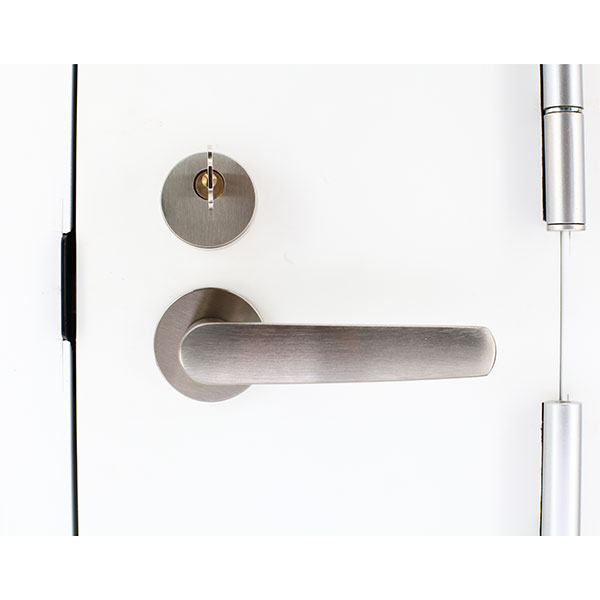

Nickel Plating

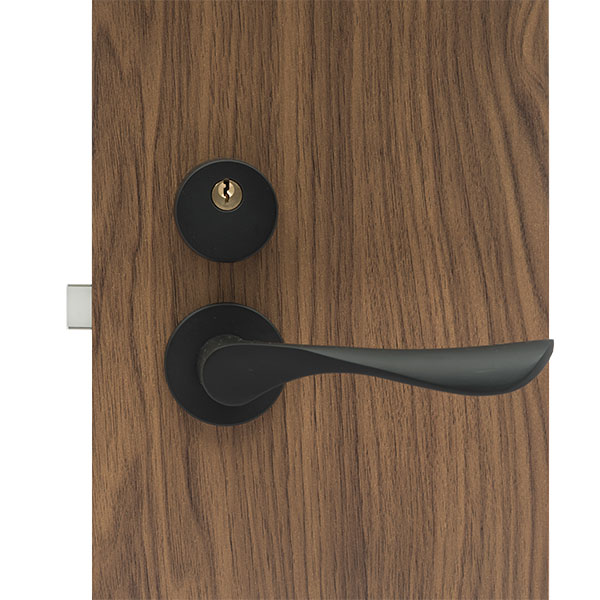

Matte Black
Champagne Gold
Custom

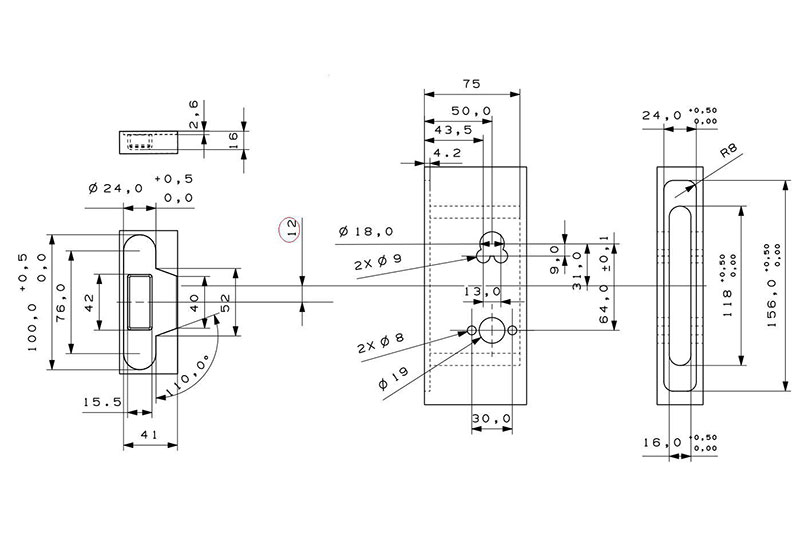

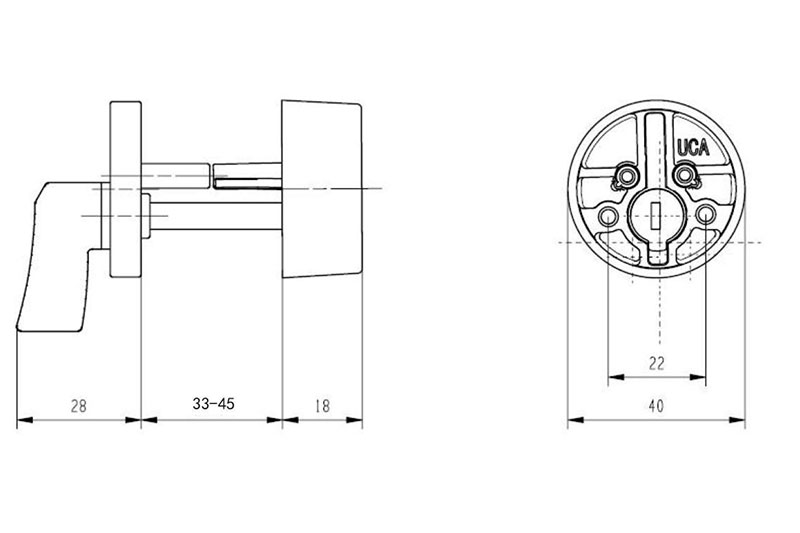

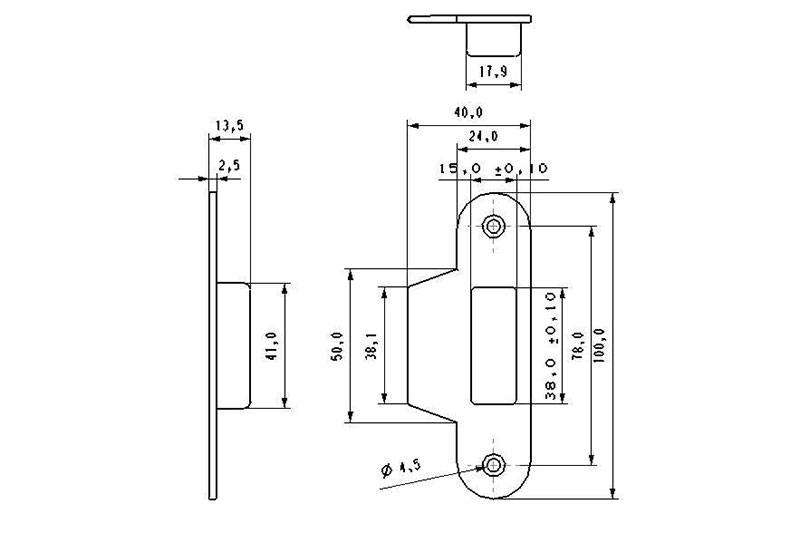

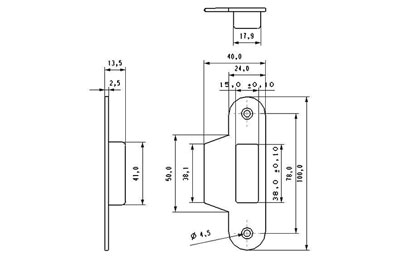

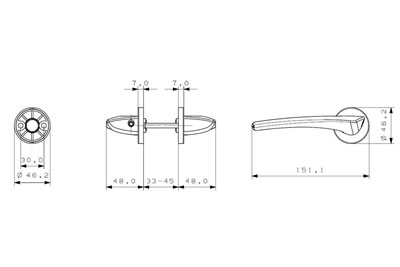

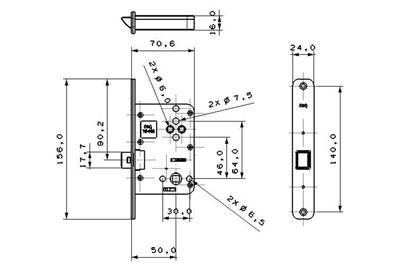

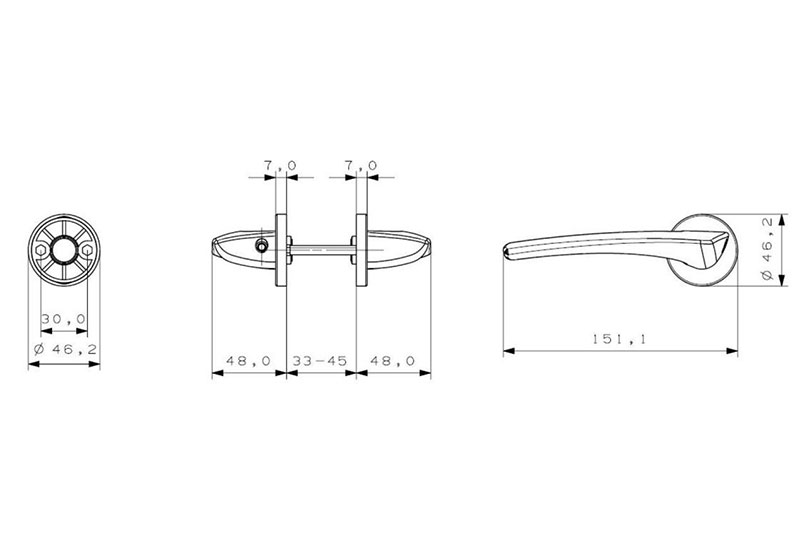

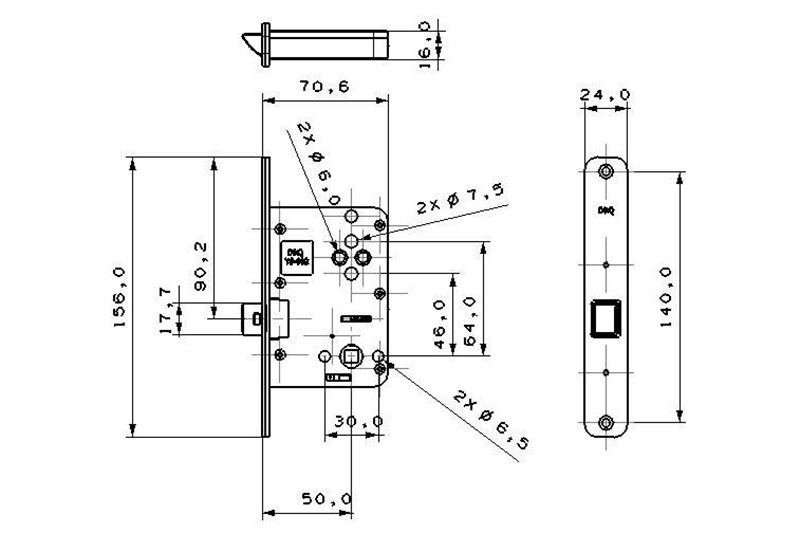

Dimensions

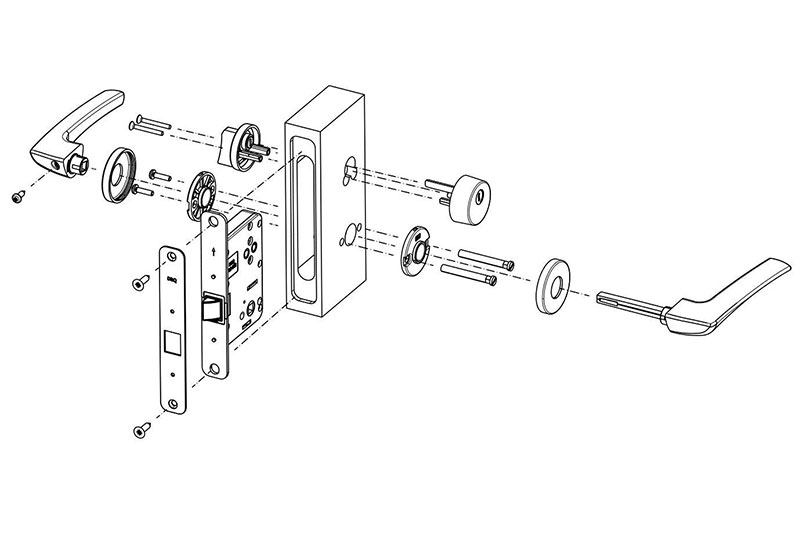

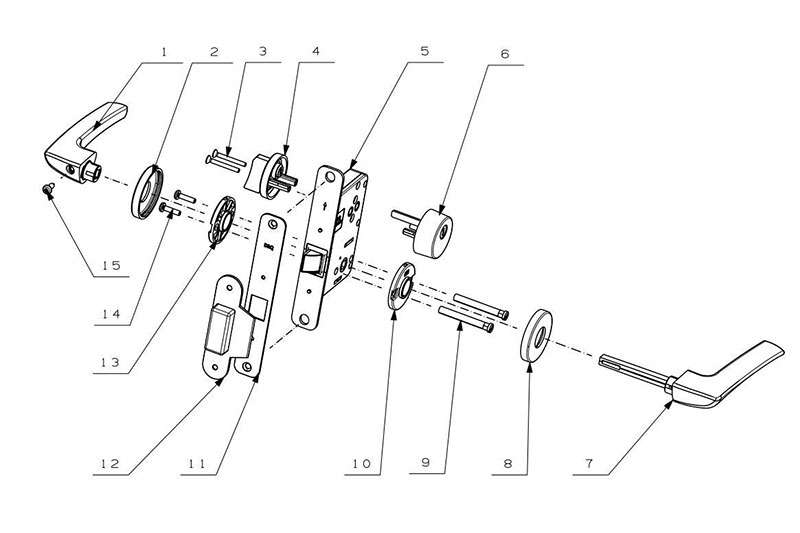

Parts List

No	Name	No	Name
1	Inner Lever Handle	9	Connecting Screw Bolt
2	Inner Panel for Lever Handle	10	Outer Holder for Lever Handle
3	Screw for Knob	11	Plate for Lock Body
4	Inner Knob	12	Striking Box
5	Lock Body	13	Inner Holder for Lever Handle
6	Outer Cylinder Panel	14	Screw
7	Outer Lever Handle	15	Fastening Screw
8	Outer Panel for Lever Handle

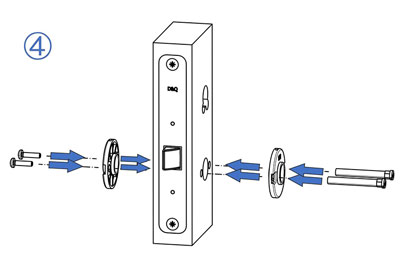

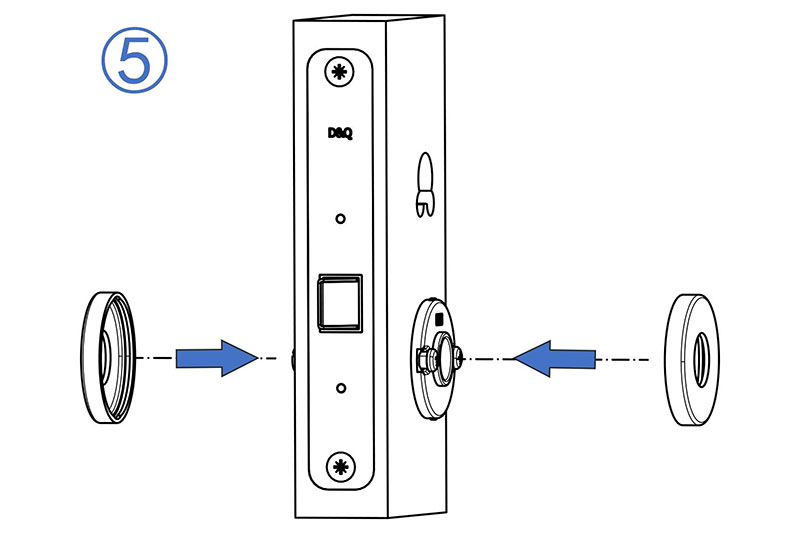

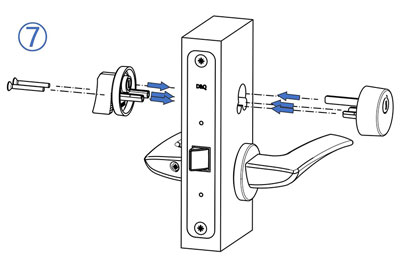

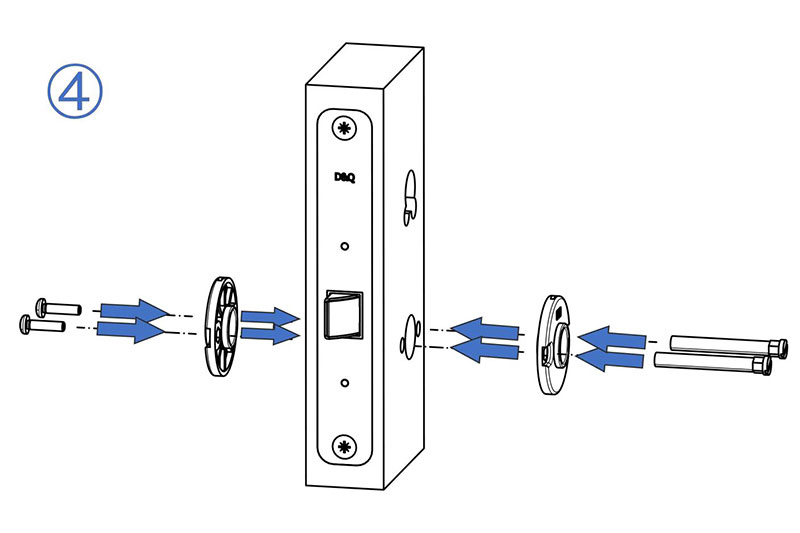

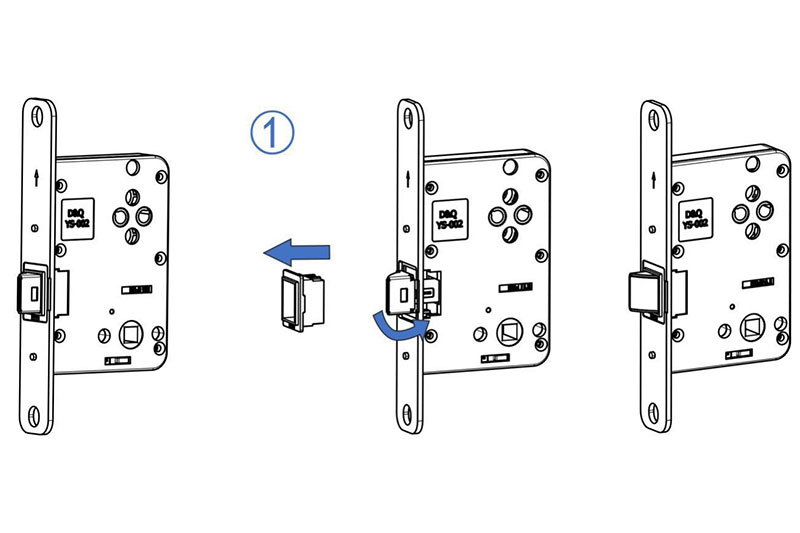

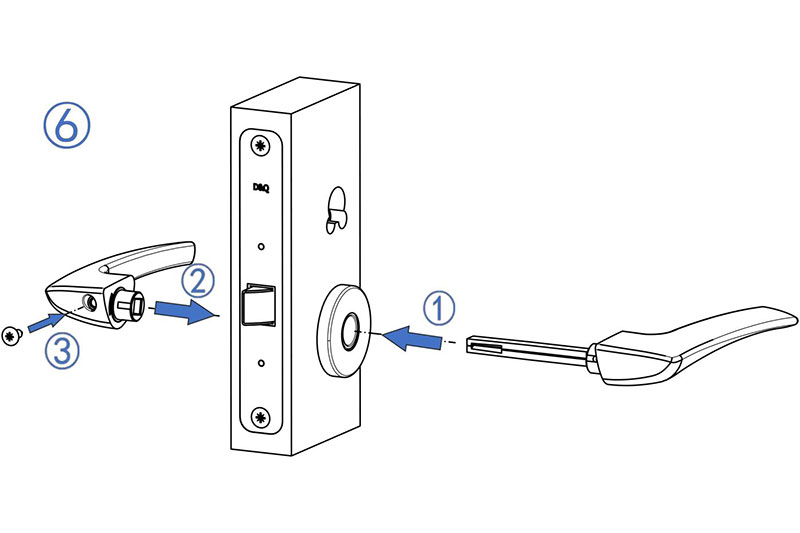

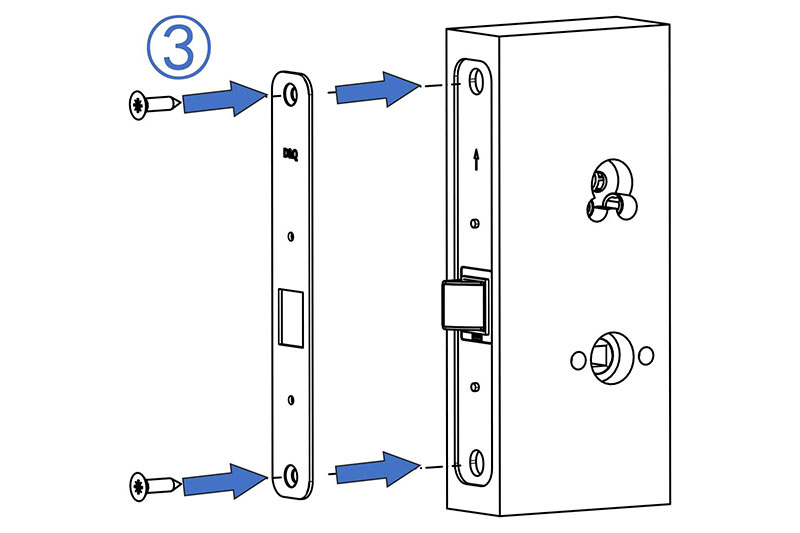

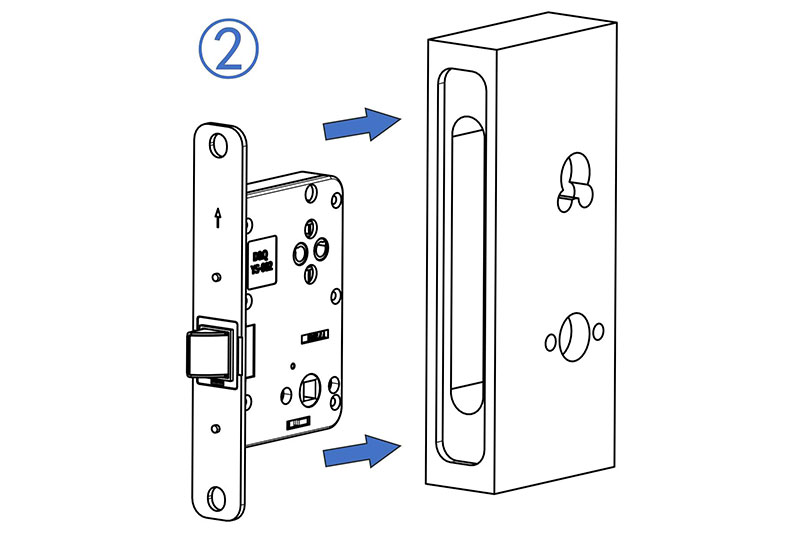

Installation Instructions

Details
