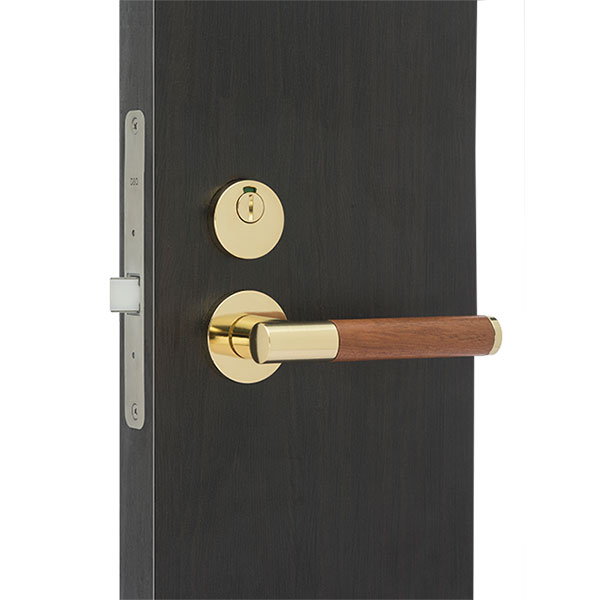

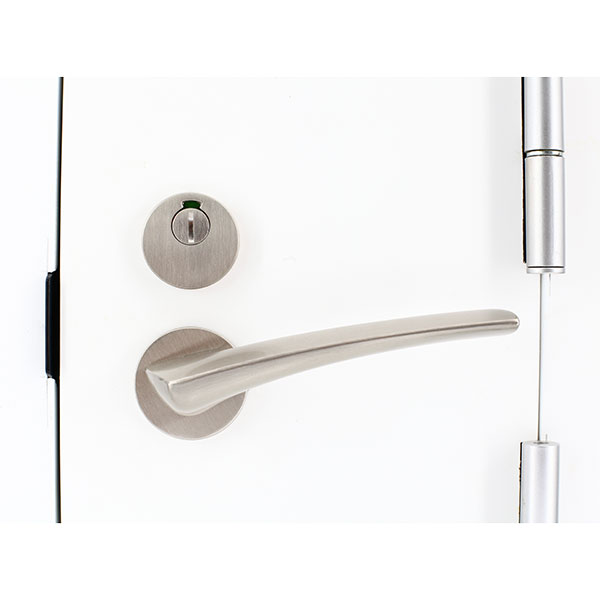

MPF1612 Door Handle Lock

MPF1612 Door Handle Lock
MPF1612 Door Handle Lock MPF1612 Door Handle Lock MPF1612 Door Handle Lock MPF1612 Door Handle Lock MPF1612 Door Handle Lock MPF1612 Door Handle Lock MPF1612 Door Handle Lock
Features

This type of mortise lever handle lock adopts a key less locking design. It could be locked with a knob from inside and unlocked with a coin from outside. Locking status could be displayed on the outer panel. When there is a state of emergency and the door is locked, it could be quickly unlocked from outside. The lock body shell is made of POM and the handle is made of aluminum alloy to ensure the firmness of the lock. The bolt is made of plastic POM and stainless steel which reduces the noise and achieves a better mute effect. The surface treatment adopts Japanese advanced technology. Various tests are carried out in accordance with Japanese JIS standards to ensure the durability of the lock both from the appearance and structure.

Color
  • Nickel Plating
    Nickel Plating
  • Matte Black
    Matte Black
  • Champagne Gold
    Champagne Gold
  • Custom
    Custom

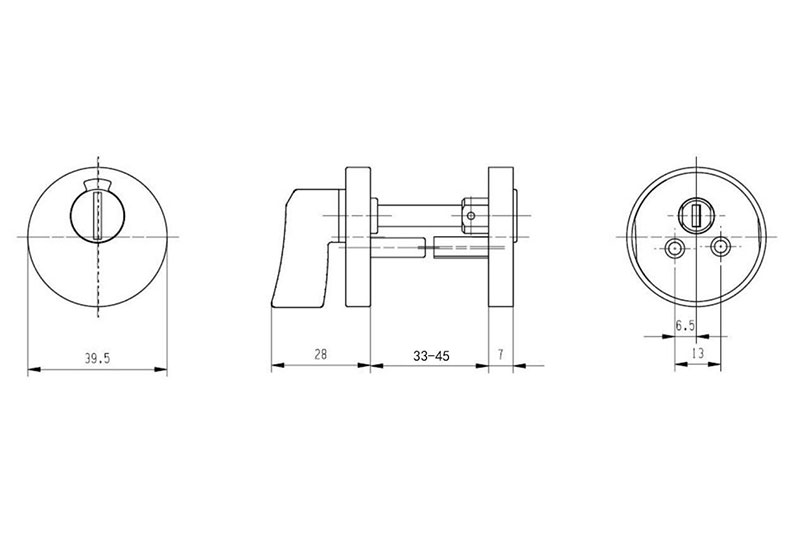

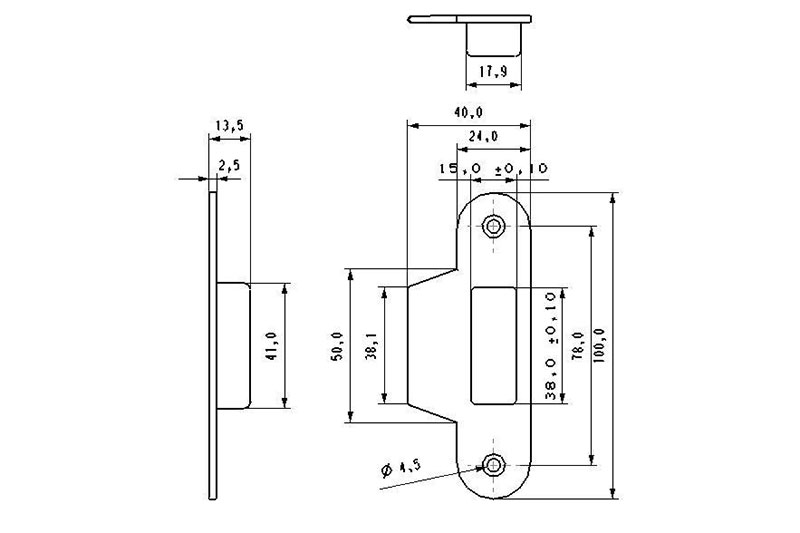

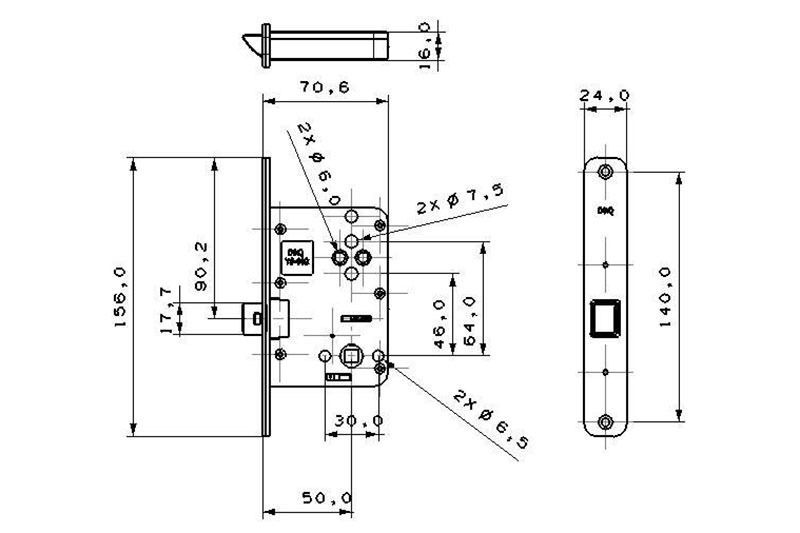

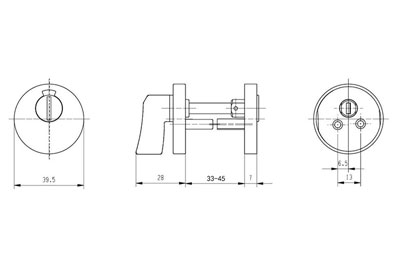

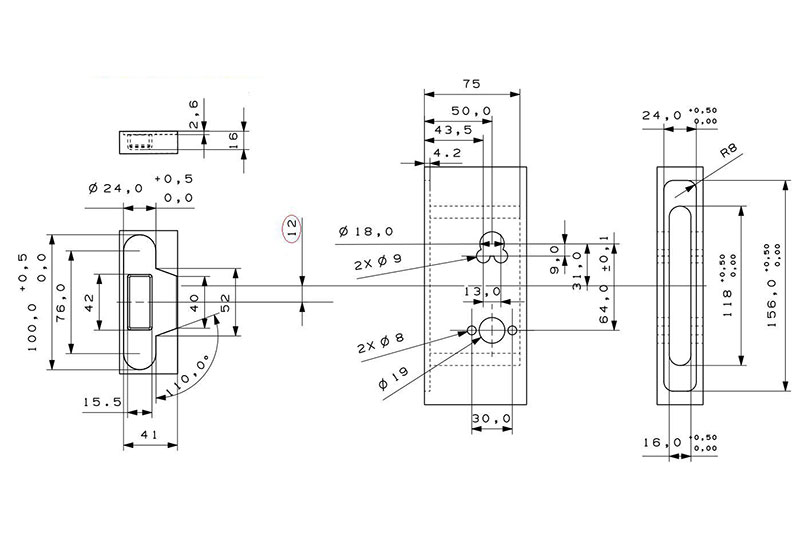

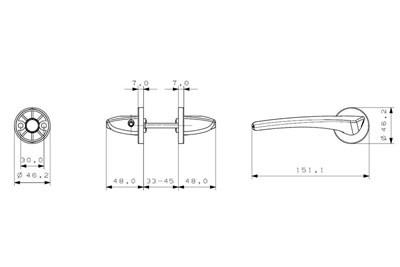

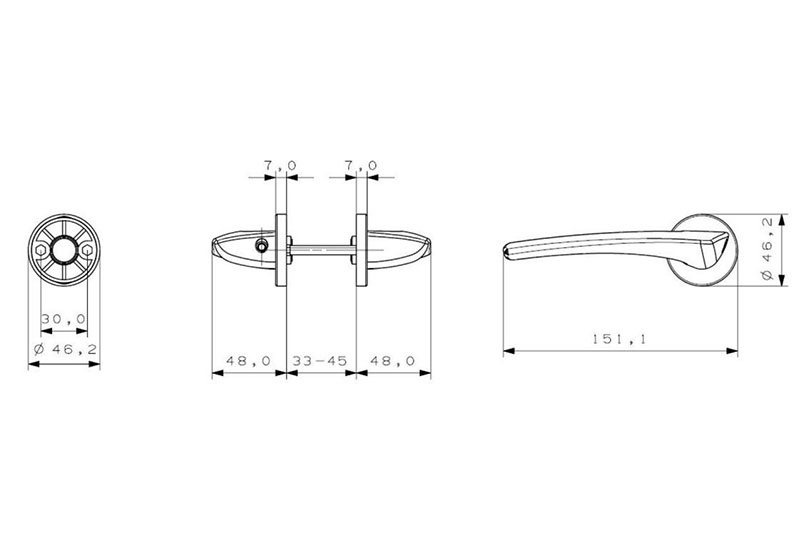

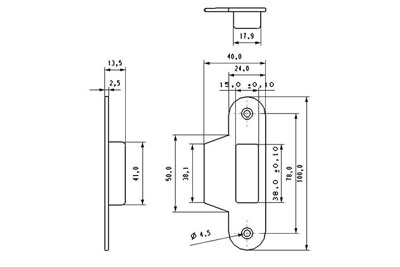

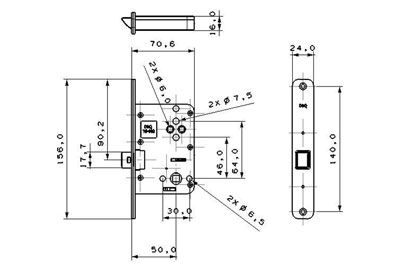

Dimensions
  • MPF1612 Door Handle Lock
  • MPF1612 Door Handle Lock
  • MPF1612 Door Handle Lock
  • MPF1612 Door Handle Lock
  • MPF1612 Door Handle Lock

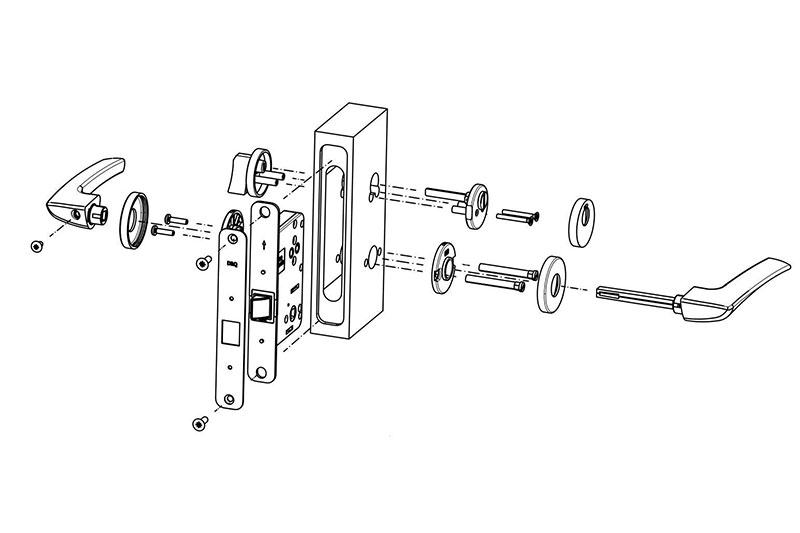

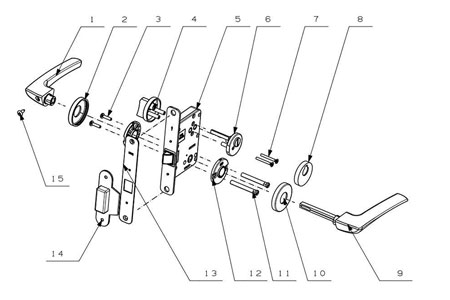

Parts List
MPF1612 Door Handle Lock
No Name No Name
1 Inner Lever Handle 9 Outer Lever Handle
2 Inner Panel for Lever Handle 10 Outer Panel for Lever Handle
3 Screw 11 Connecting Screw Bolt
4 Inner Knob 12 Outer Holder for Lever Handle
5 Lock Body 13 Plate for Lock Body
6 Outer Knob 14 Striking Box
7 Screw for Knob 15 Fastening Screw
8 Outer Knob Panel

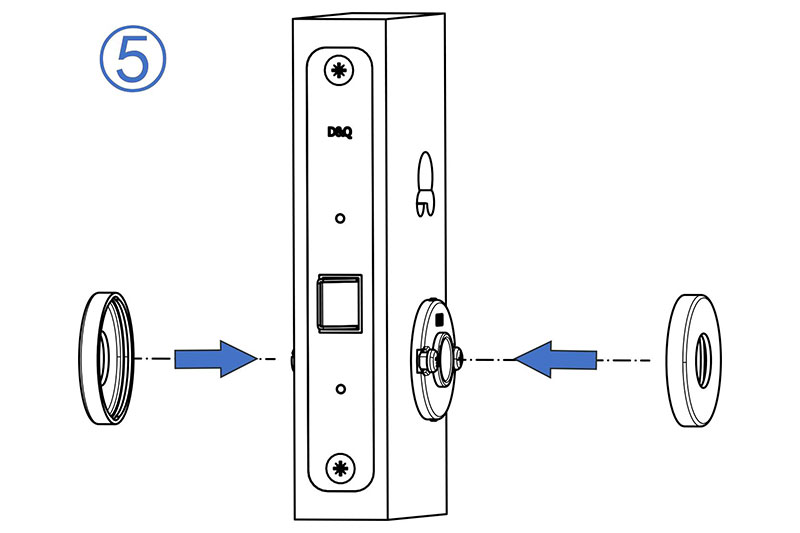

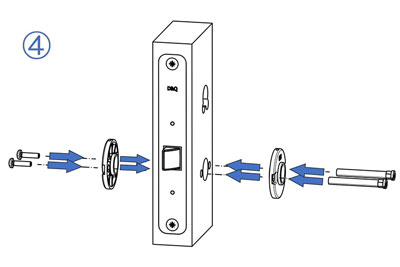

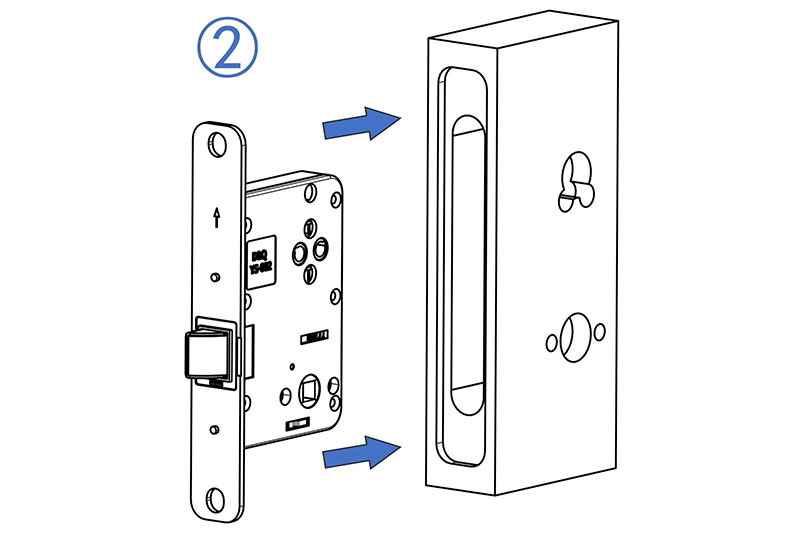

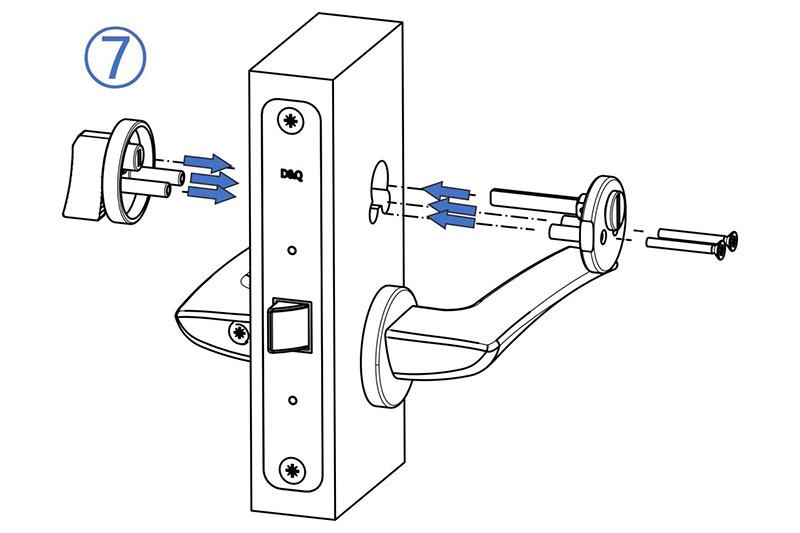

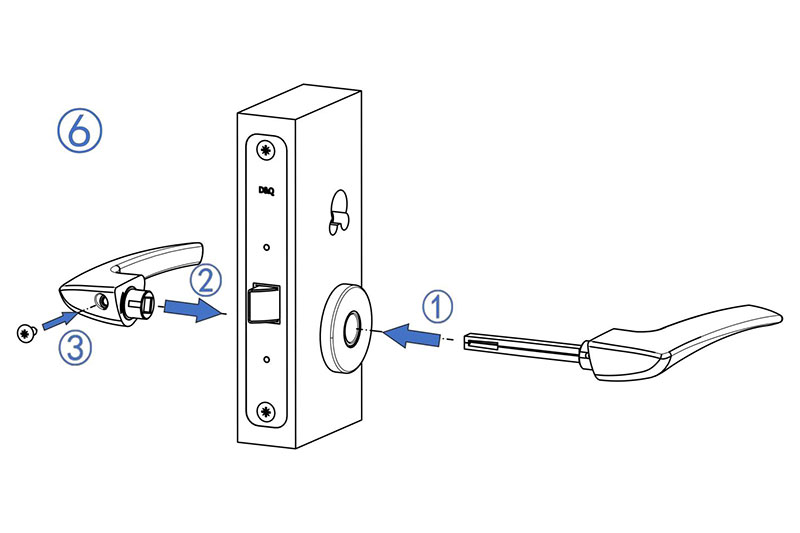

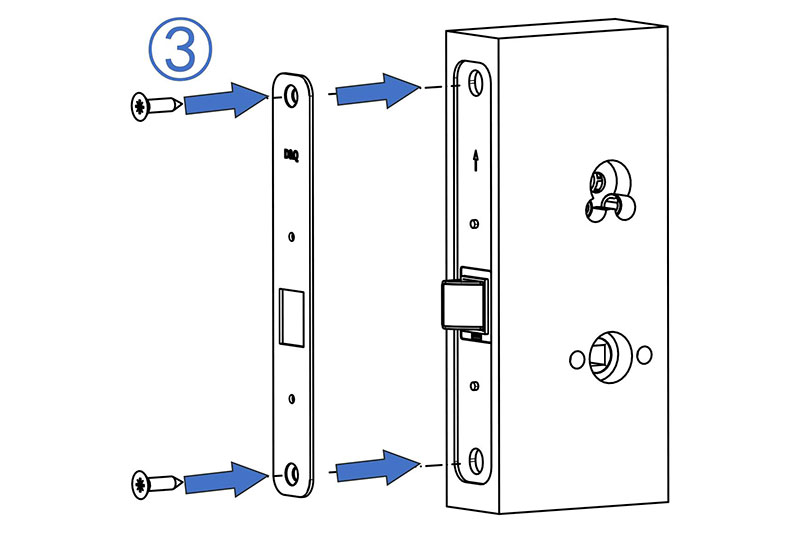

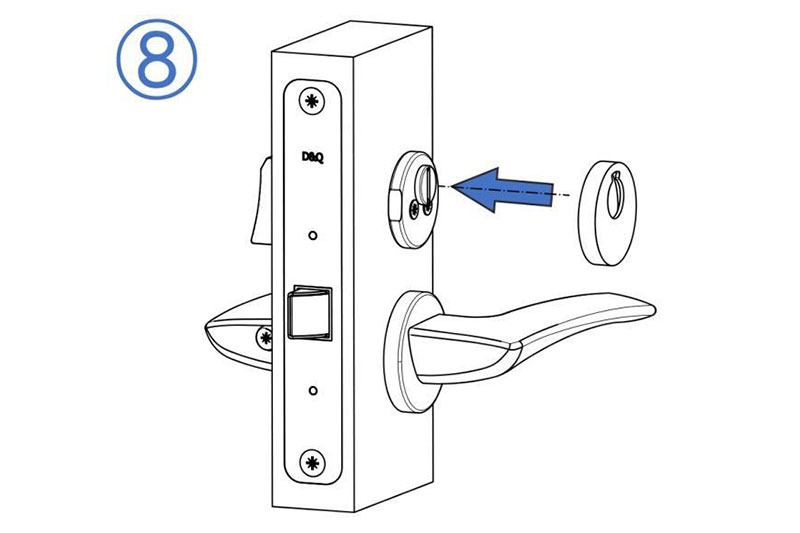

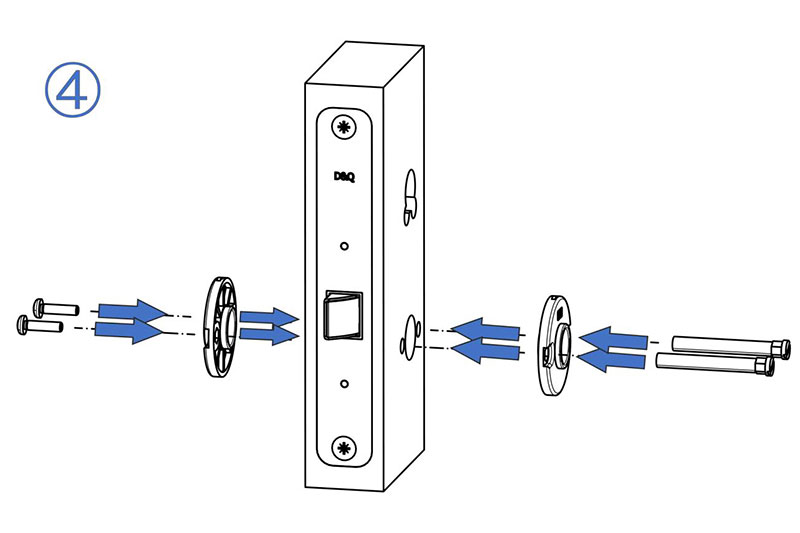

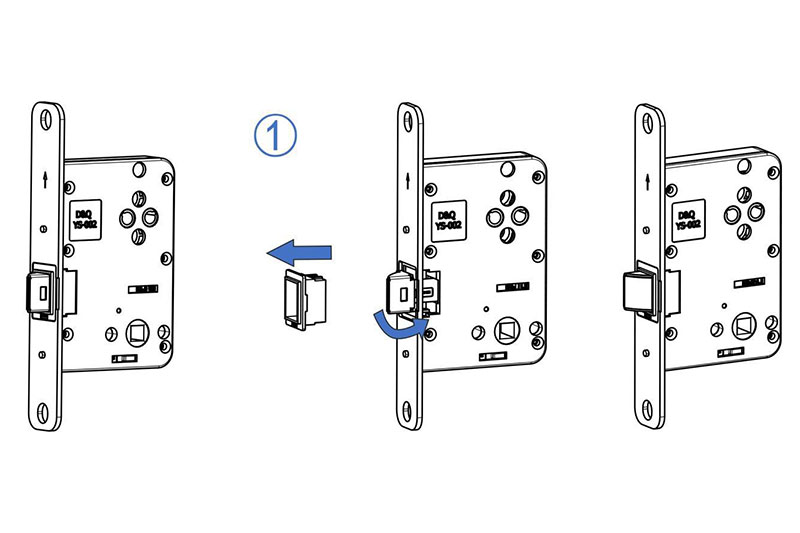

Installation Instructions
  • MPF1612 Door Handle Lock
  • MPF1612 Door Handle Lock
  • MPF1612 Door Handle Lock
  • MPF1612 Door Handle Lock
  • MPF1612 Door Handle Lock
  • MPF1612 Door Handle Lock
  • MPF1612 Door Handle Lock
  • MPF1612 Door Handle Lock
  • MPF1612 Door Handle Lock

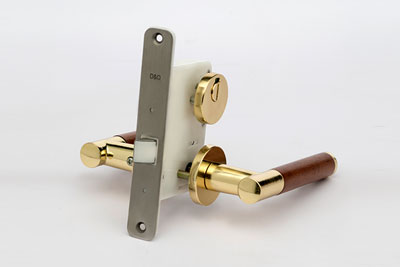

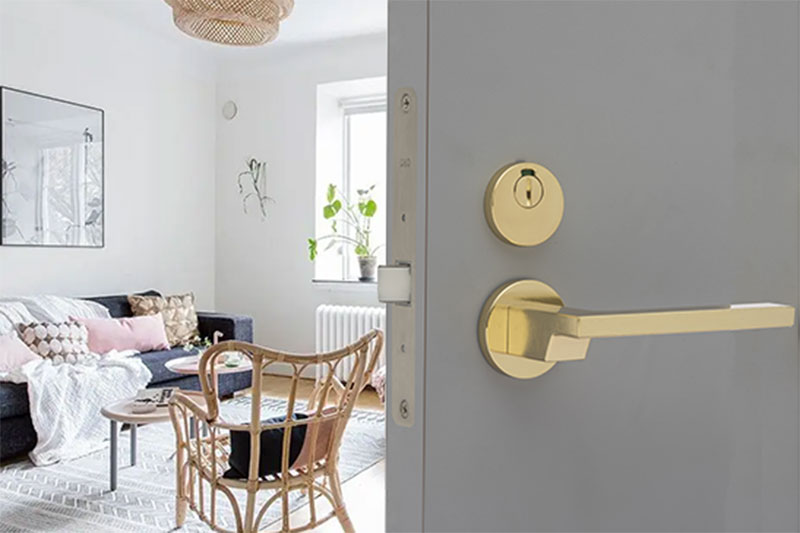

Details
  • MPF1612 Door Handle Lock
  • MPF1612 Door Handle Lock
  • MPF1612 Door Handle Lock
  • MPF1612 Door Handle Lock
  • MPF1612 Door Handle Lock
  • MPF1612 Door Handle Lock
Yantai Mougao Smarthome Co. is an enterprise with strong die casting and hardware production expertise applying it in the production of high-quality locksets and hardware accessories for customers. Our products include highly secure push pull mortise locks, mortise lever locks, furniture pull handles and door hinges, and they are widely used in homes, hotels, office buildings, medical institutions, and other applications.
