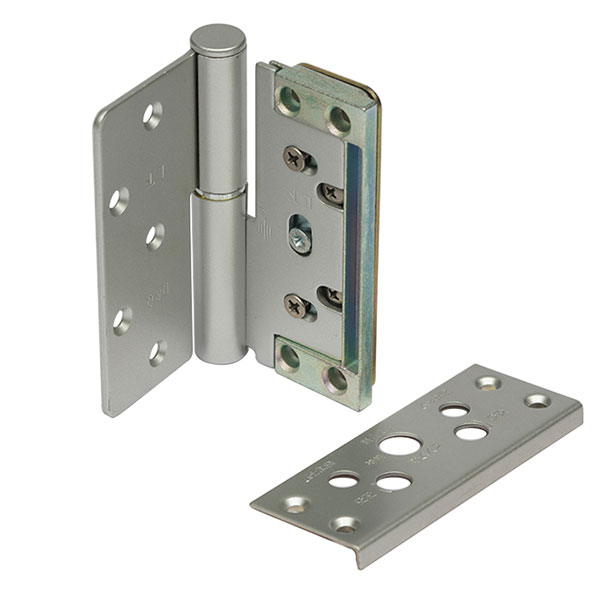

MG-H04-X Door Hinge

MG-H04-X Door Hinge
MG-H04-X Door Hinge MG-H04-X Door Hinge MG-H04-X Door Hinge MG-H04-X Door Hinge
Features

The main advantage of this adjustable hinge is its convenient disassembly, with a +/- 4mm up & down/ left & right/ front & back adjustment. This effectively solves the problems of fine adjusting during the installation and after years of use. The opening angle is 180 degrees. Each batch of hinges has passed adhesion test, acid and alkali resistance test and 72-hour salt spray test. Customized orders are welcomed. Recommended door thickness is 38mm-45mm .We suggest to install 2 pcs of hinges/door for doors weighing less than 50kg.We suggest to install 3 pcs of hinges/door for doors weighing over 50kg.

Color
  • Nickel Plating
    Nickel Plating
  • Matte Black
    Matte Black
  • Champagne Gold
    Champagne Gold
  • Custom
    Custom

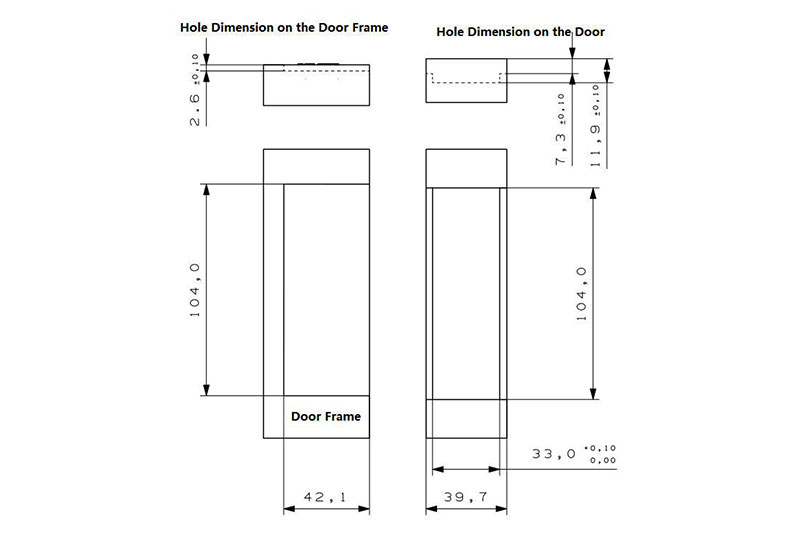

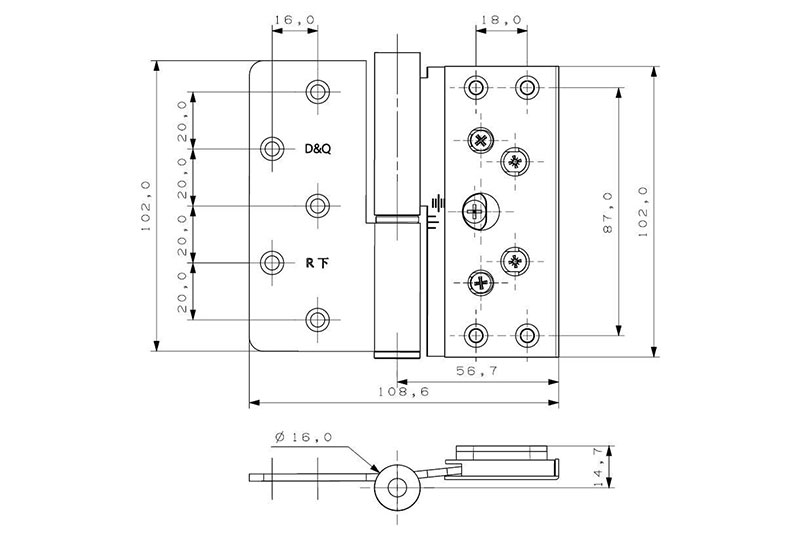

Dimensions
  • MG-H04-X Door Hinge
  • MG-H04-X Door Hinge
  • MG-H04-X Door Hinge

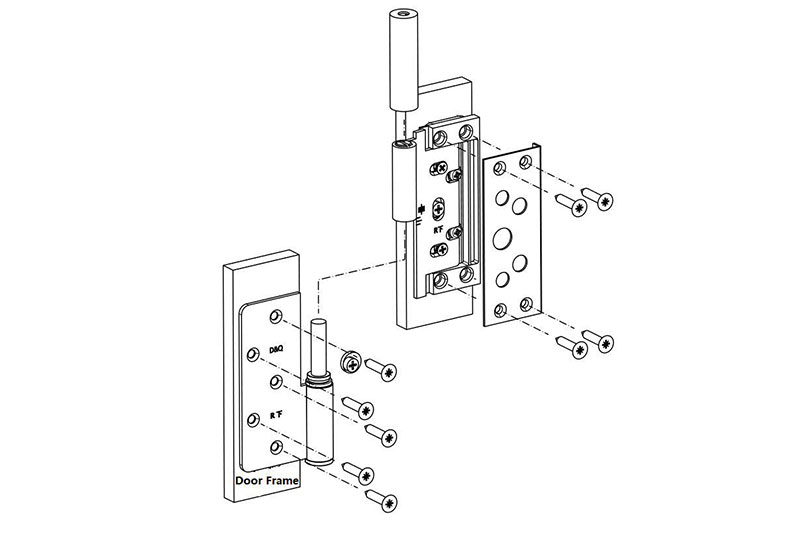

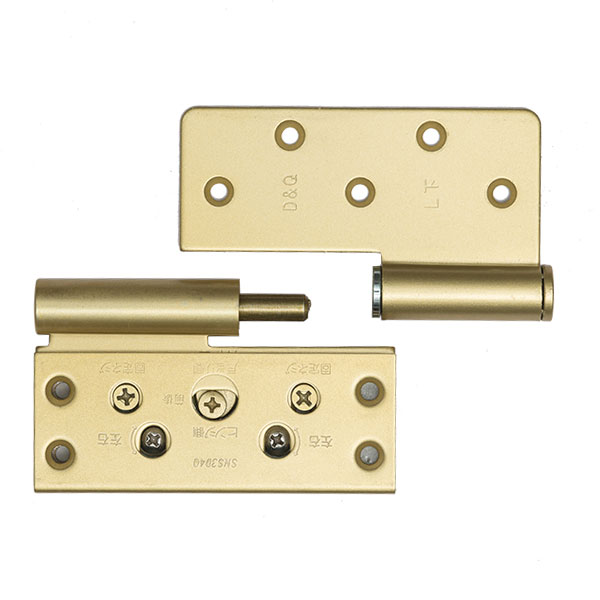

Parts List
MG-H04-X Door Hinge
No Name No Name
1 Plastic Sleeve 5 Rotary Hinge
2 Up and down adjustment screw 6 Hinge Cover
3 Left and right adjustment screw 7 Set Screw
4 Fixed Hinge 8 Connecting Pin

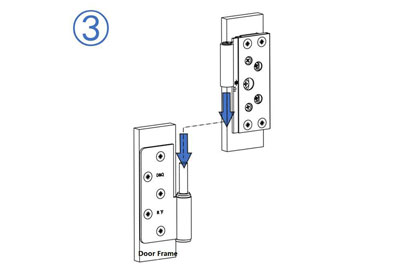

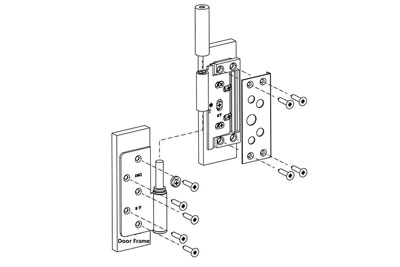

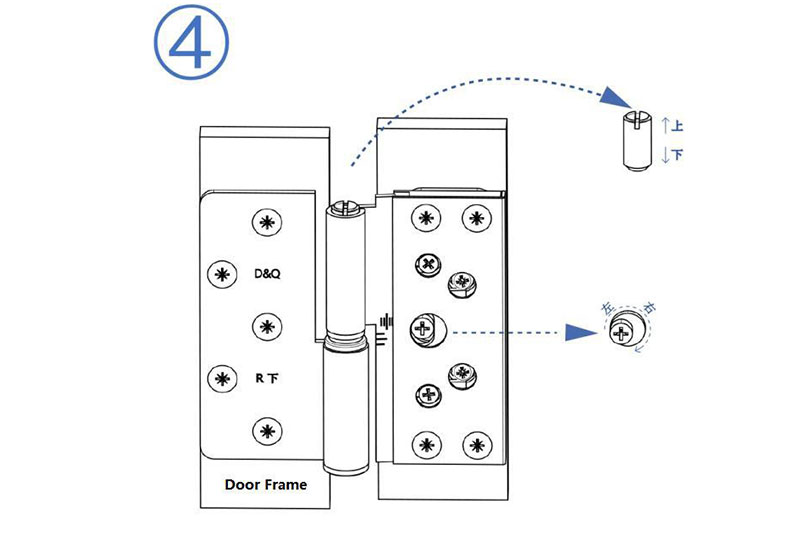

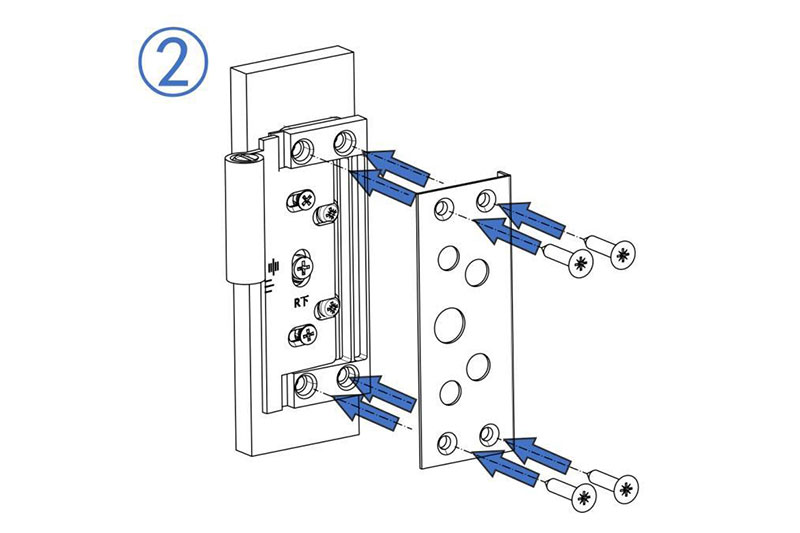

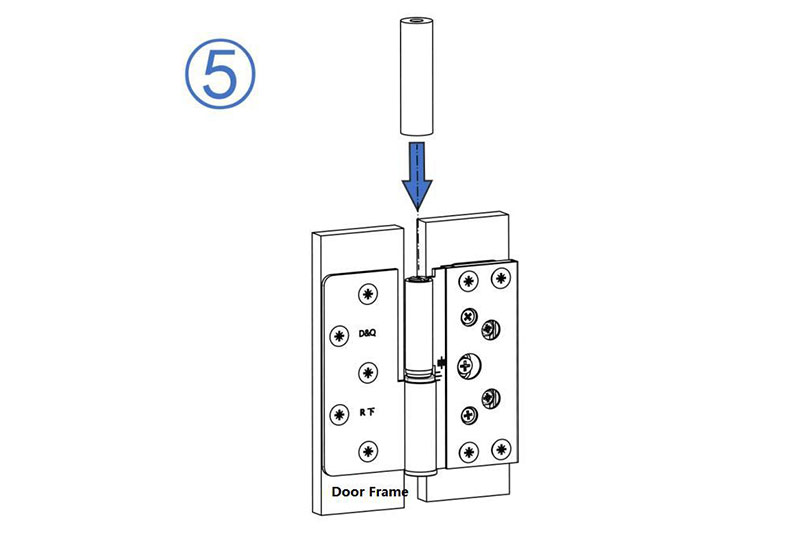

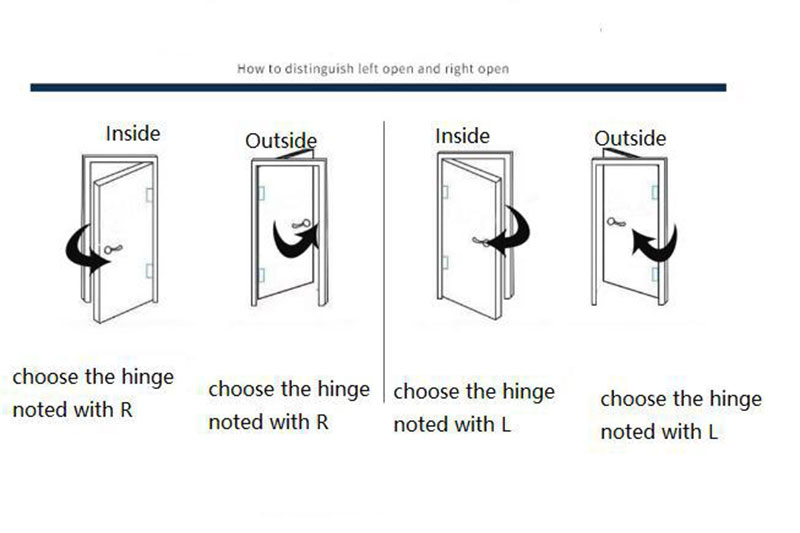

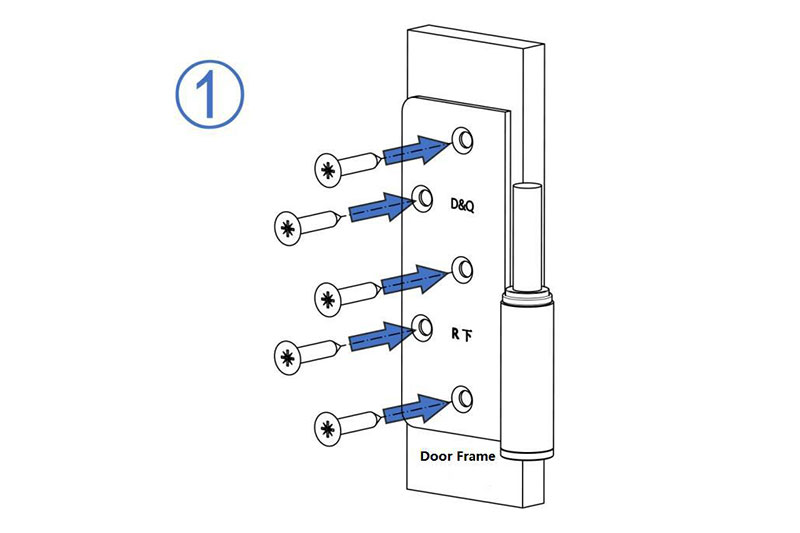

Installation Instructions
  • MG-H04-X Door Hinge
  • MG-H04-X Door Hinge
  • MG-H04-X Door Hinge
  • MG-H04-X Door Hinge
  • MG-H04-X Door Hinge
  • MG-H04-X Door Hinge
Yantai Mougao Smarthome Co. is an enterprise with strong die casting and hardware production expertise applying it in the production of high-quality locksets and hardware accessories for customers. Our products include highly secure push pull mortise locks, mortise lever locks, furniture pull handles and door hinges, and they are widely used in homes, hotels, office buildings, medical institutions, and other applications.
