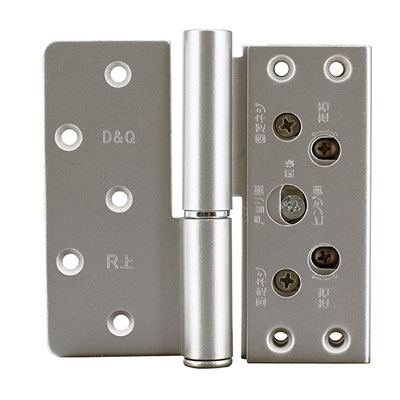

MG-H03-X Door Hinge

MG-H03-X Door Hinge
MG-H03-X Door Hinge MG-H03-X Door Hinge MG-H03-X Door Hinge
Features

The three-dimensional adjustable hinge is easy to disassemble. It could be adjusted within the range of 4mm from up and down, front and back, left and right. The main materials are cold-rolled steel plates and cold-headed steel plates. The main components are galvanized and painted. The hinges have also passed the SGS tests. Installed on the test door weighing 100KG and after 100,000 times of opening and closing tests, the hinges still work normally without any deformation. Recommended door thickness is 38mm-45mm .We suggest to install 2 pcs of hinges/door for doors weighing less than 50kg.We suggest to install 3 pcs of hinges/door for doors weighing over 50kg.

Color
  • Nickel Plating

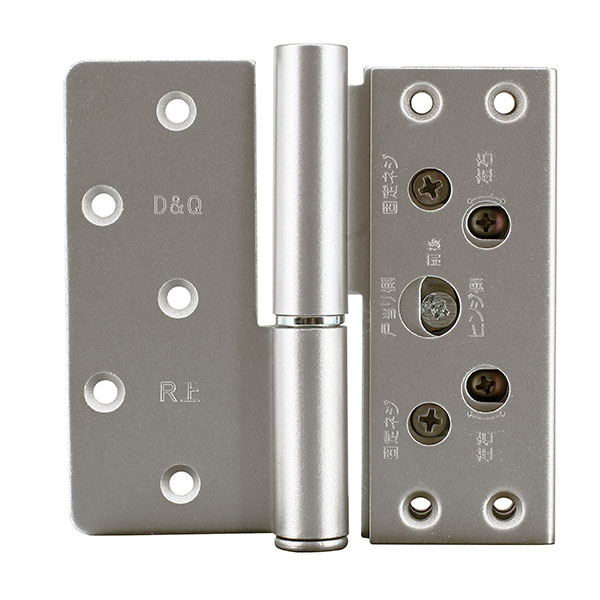

    Nickel Plating
  • Matte Black

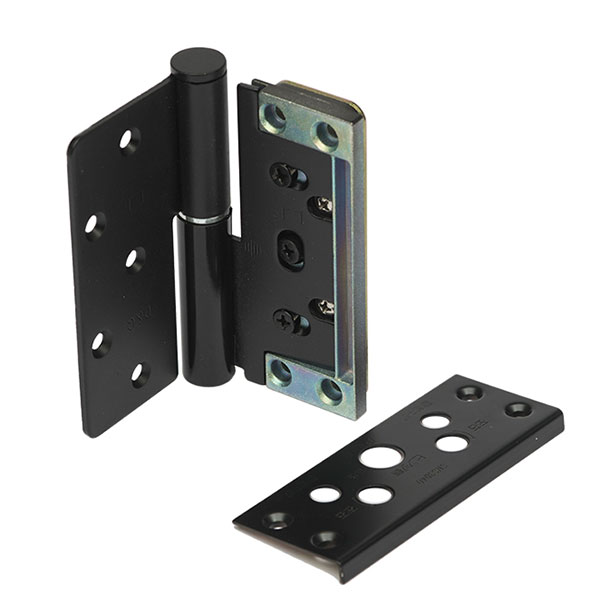

    Matte Black
  • Champagne Gold
    Champagne Gold
  • Custom
    Custom

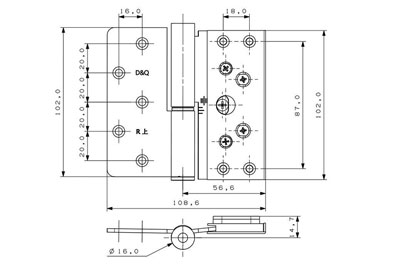

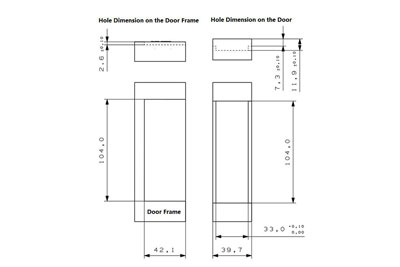

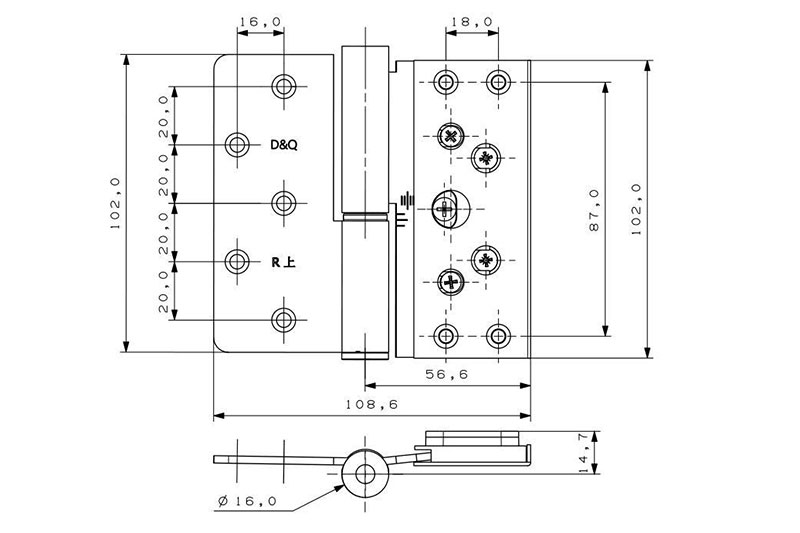

Dimensions
  • MG-H03-X Door Hinge
  • MG-H03-X Door Hinge
  • MG-H03-X Door Hinge

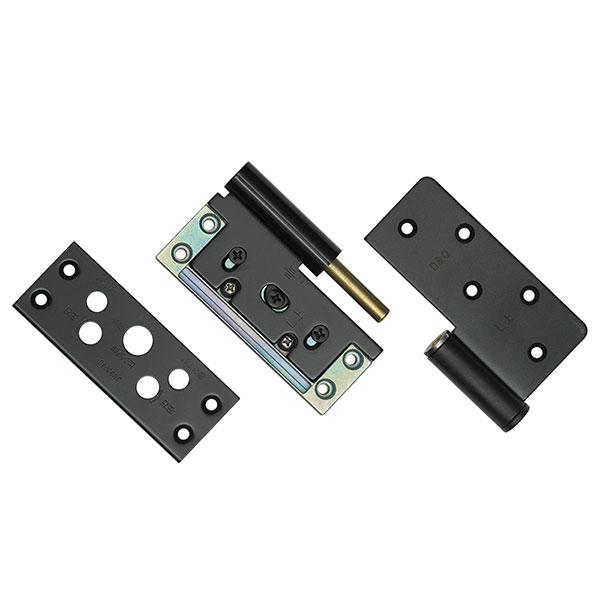

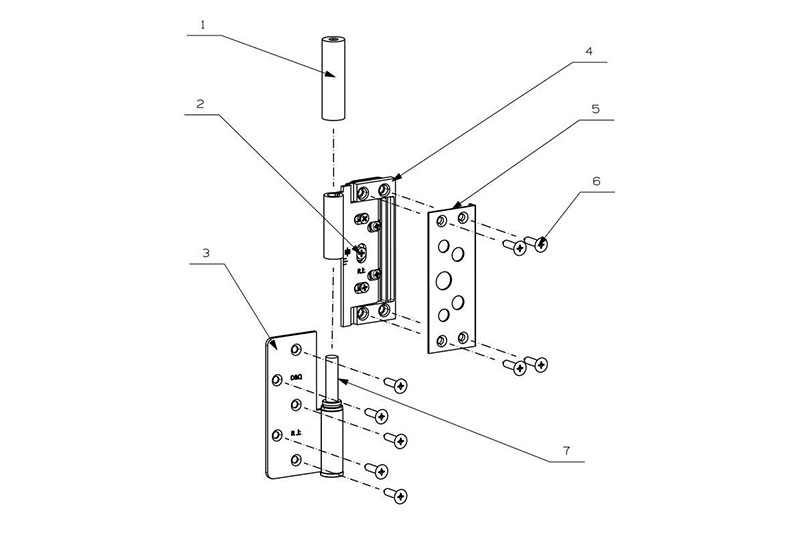

Parts List
MG-H03-X Door Hinge
No Name No Name
1 Plastic Sleeve 5 Hinge Cover
2 Left and right adjustment screw 6 Set Screw
3 Fixed Hinge 7 Connecting Pin
4 Rotary Hinge

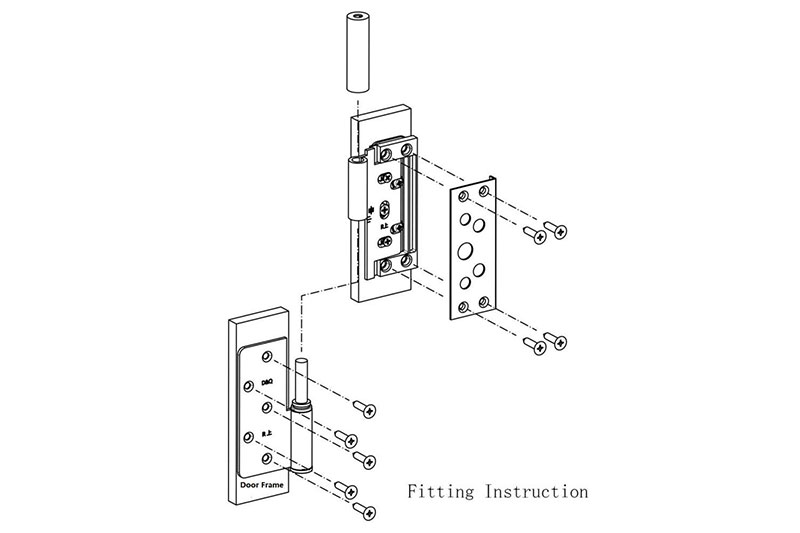

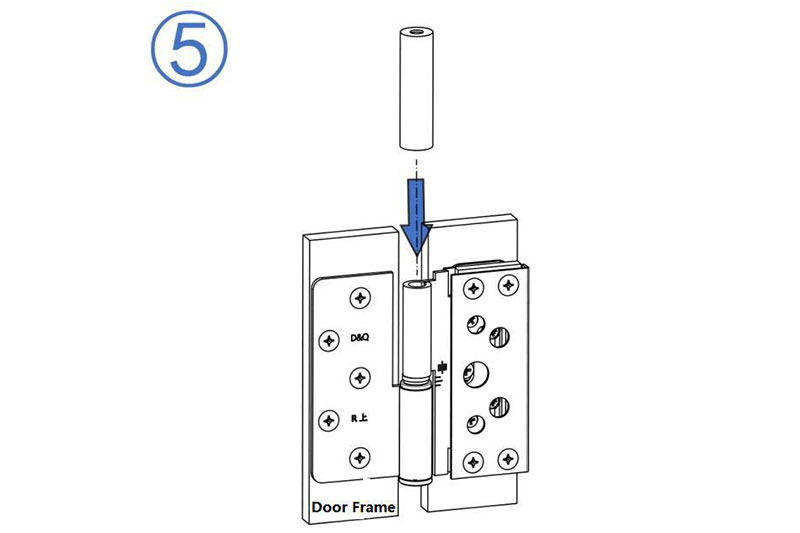

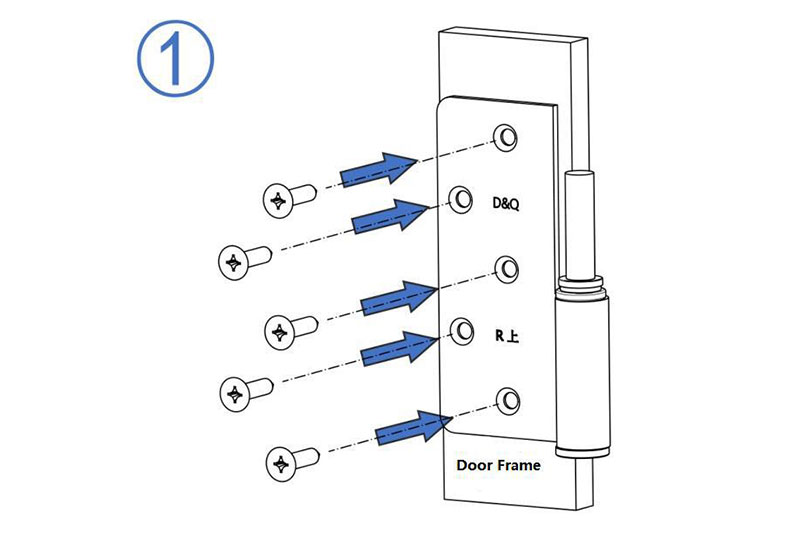

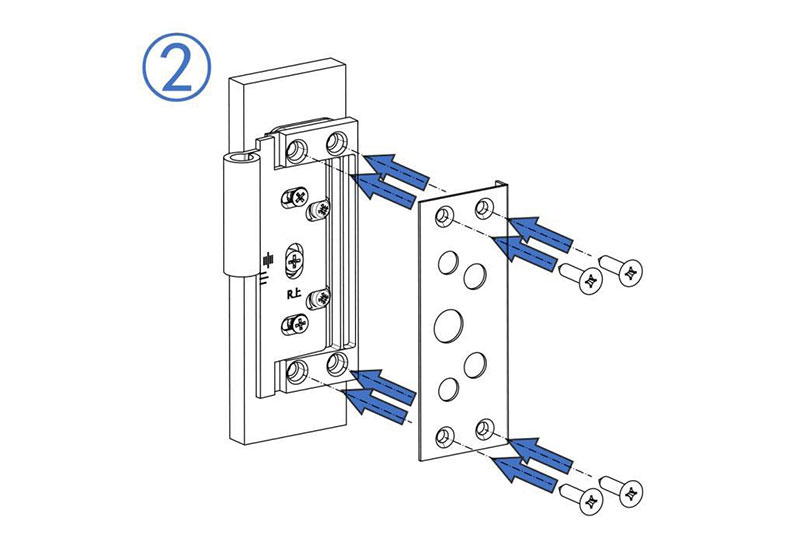

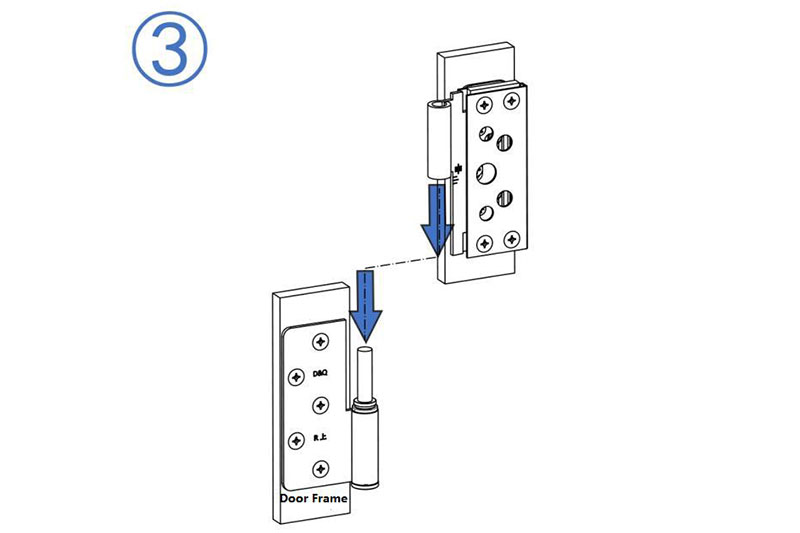

Installation Instructions
  • MG-H03-X Door Hinge
  • MG-H03-X Door Hinge
  • MG-H03-X Door Hinge
  • MG-H03-X Door Hinge
  • MG-H03-X Door Hinge
  • MG-H03-X Door Hinge
Yantai Mougao Smarthome Co. is an enterprise with strong die casting and hardware production expertise applying it in the production of high-quality locksets and hardware accessories for customers. Our products include highly secure push pull mortise locks, mortise lever locks, furniture pull handles and door hinges, and they are widely used in homes, hotels, office buildings, medical institutions, and other applications.
