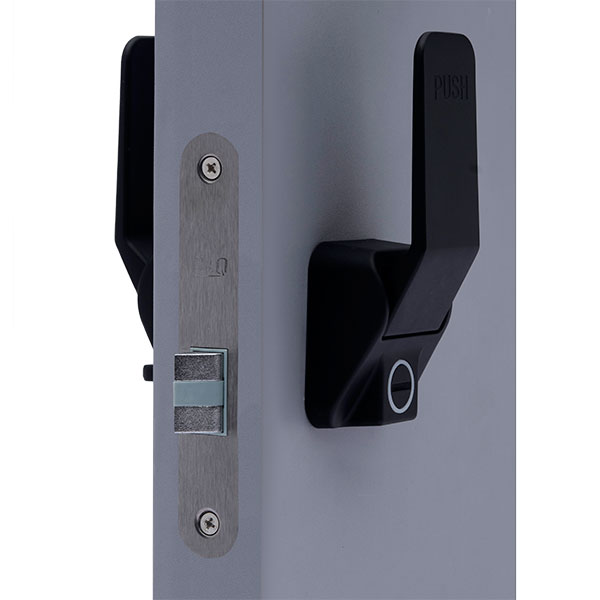

MG3813 Series Push Pull Mortise Lock

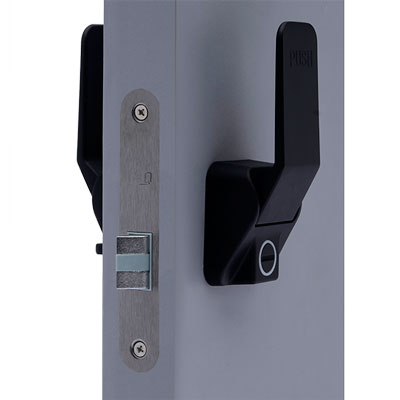

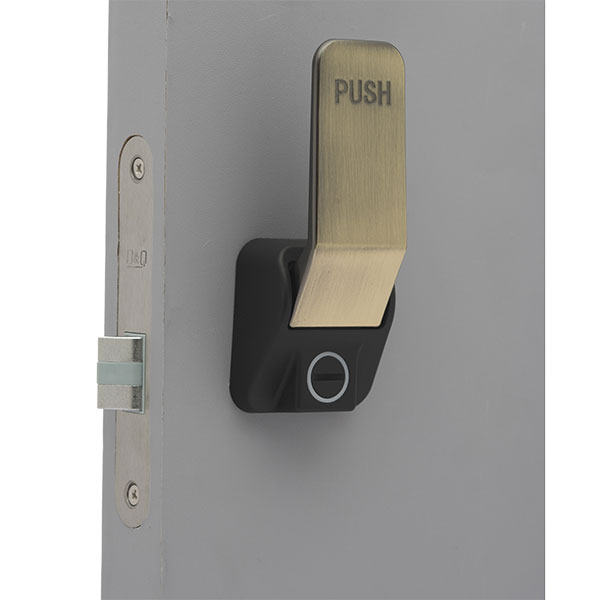

MG3813 Push Pull Mortise Lock

Features

This type of push-pull mortise lock adopts a key less locking design. It could be locked with a knob from inside and unlocked with a coin from outside. When there is a state of emergency and the door is locked, it could be quickly unlocked from outside. The lock body shell is made of POM and the handle is made of aluminum alloy to ensure the firmness of the lock. The bolt is made of plastic POM and zinc alloy which reduces the noise and achieves a better mute effect. The appearance is stylish and uses a sleek design. The surface treatment adopts Japanese advanced technology. Various tests are carried out in accordance with Japanese JIS standards to ensure the durability of the lock both from the appearance and structure.

Color

Nickel Plating
Matte Black
Champagne Gold
Custom

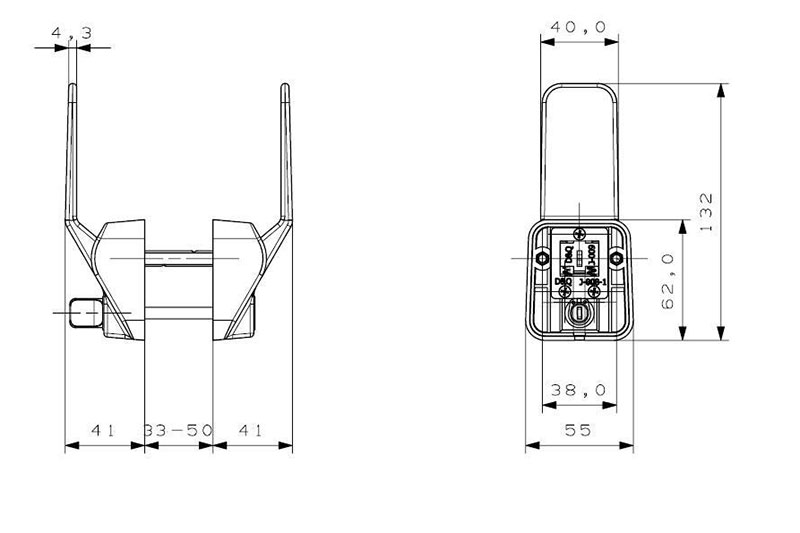

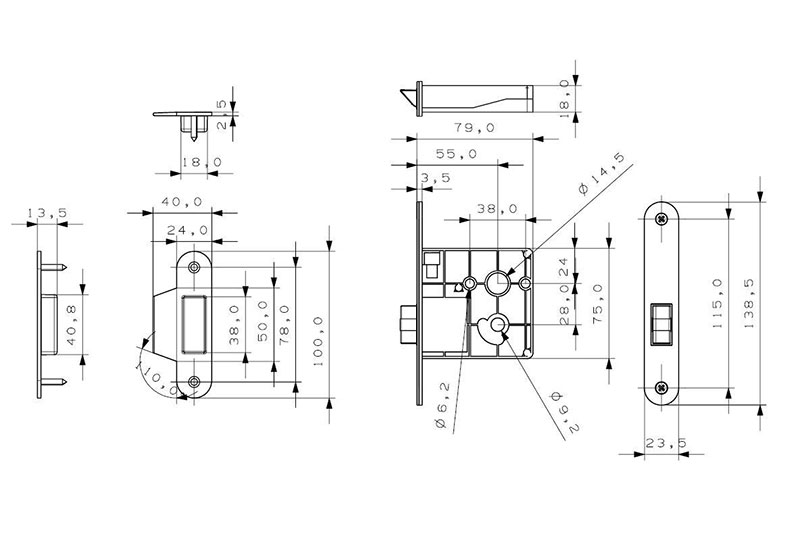

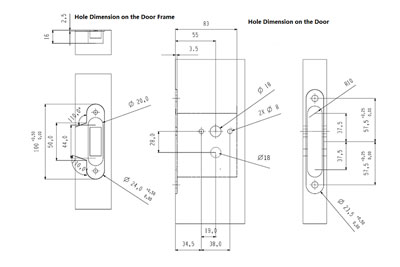

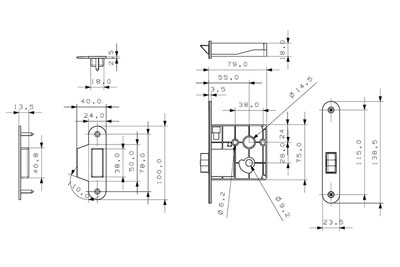

Dimensions

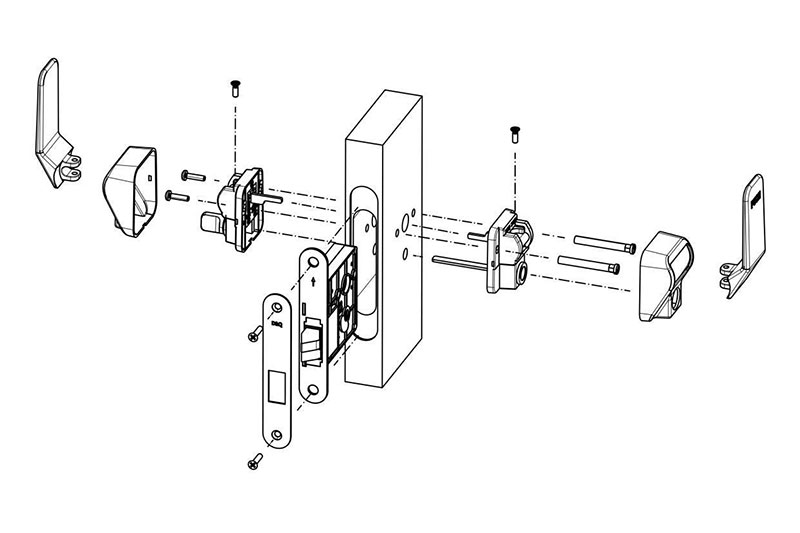

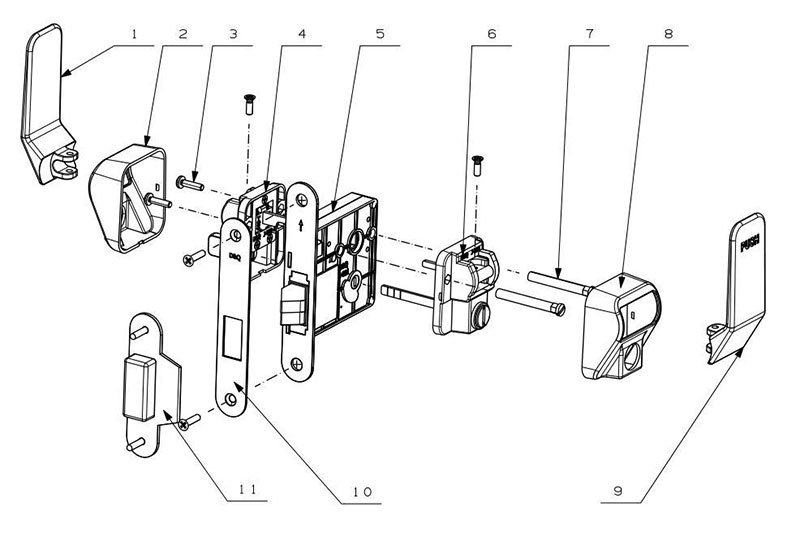

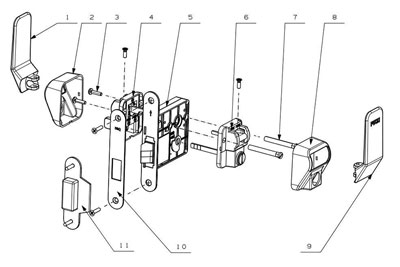

Parts List

No	Name	No	Name
1	Inner Lever Handle	7	Connecting Screw Bolt
2	Inner Panel	8	Outer Panel
3	Screw for Lever Handle	9	Outer Lever Handle
4	Inner Panel Holder	10	Plate for Lock Body
5	Lock Body	11	Striking Box
6	Outer Panel Holder

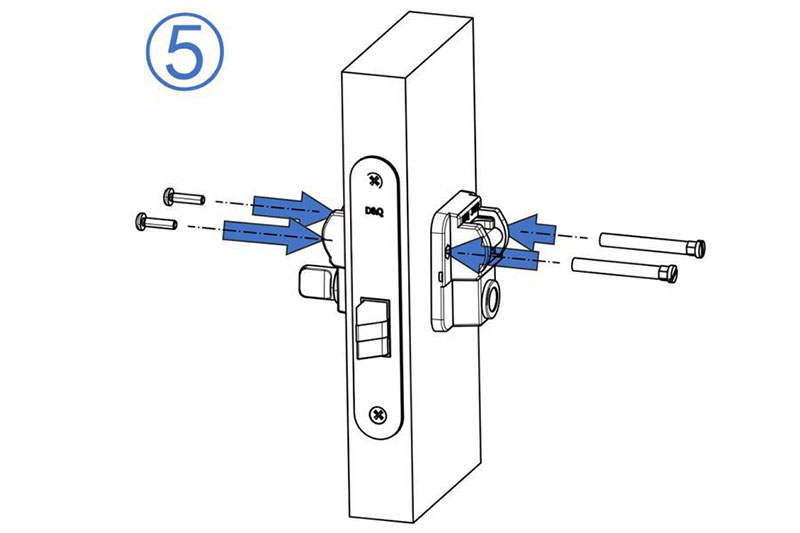

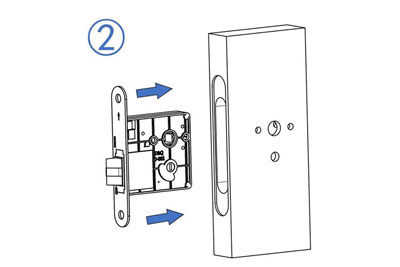

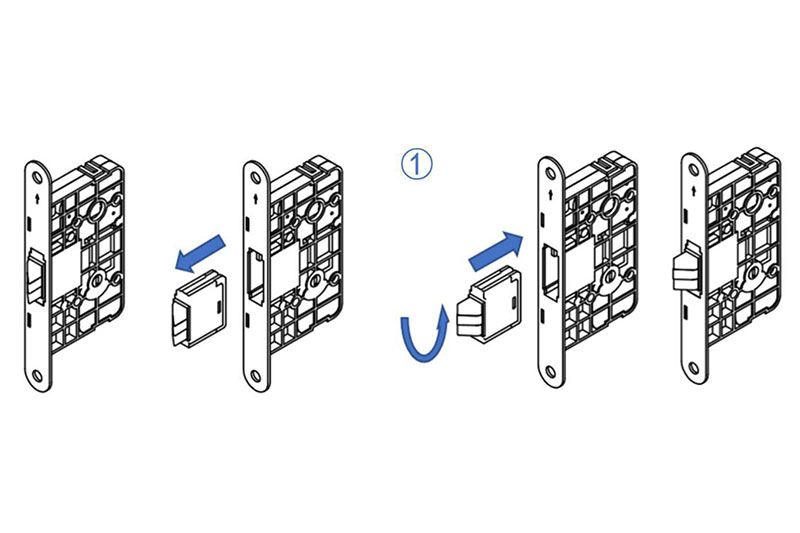

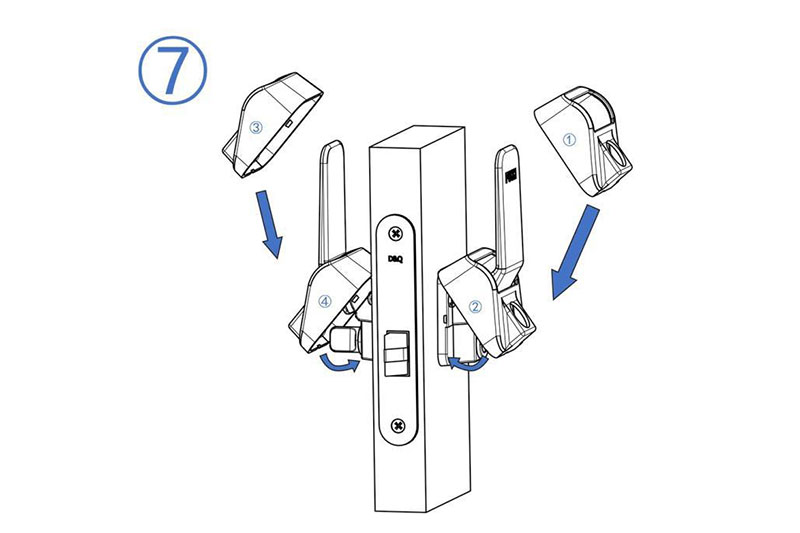

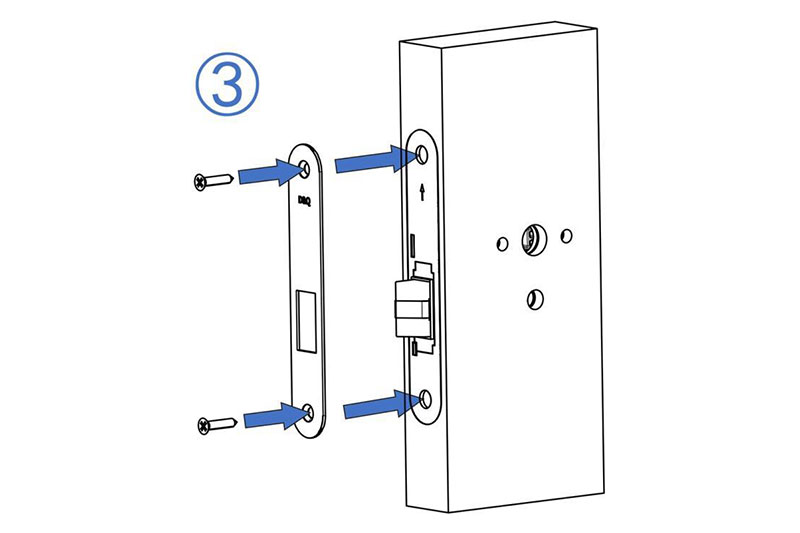

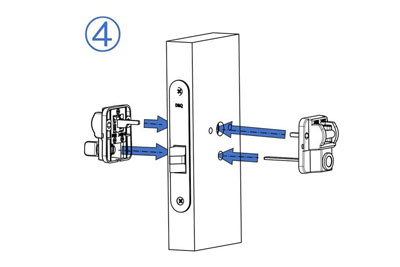

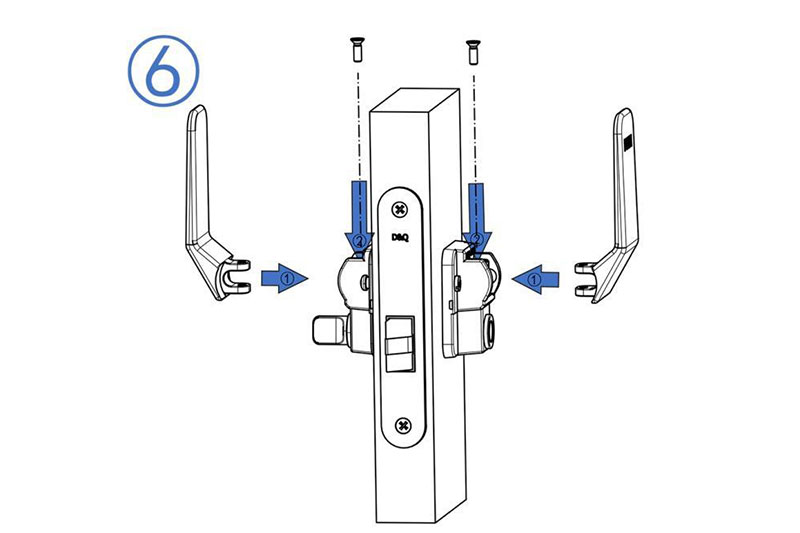

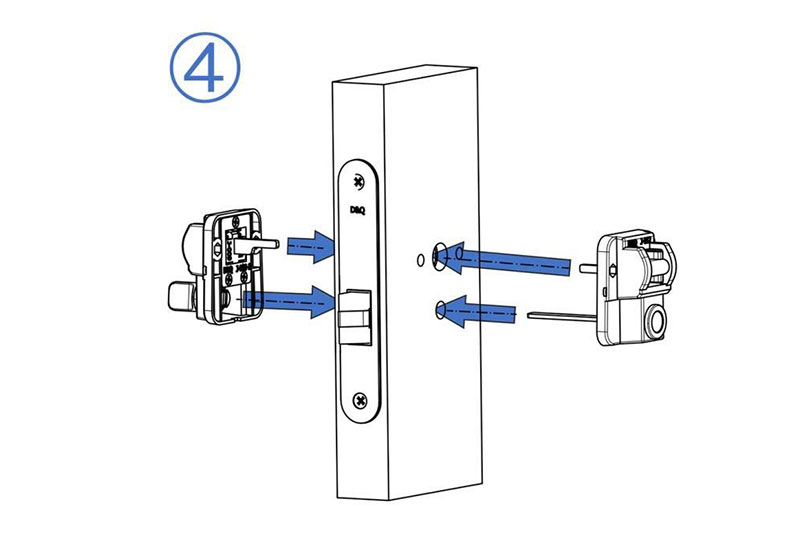

Installation Instructions
