MG3811 Series Push Pull Mortise Lock

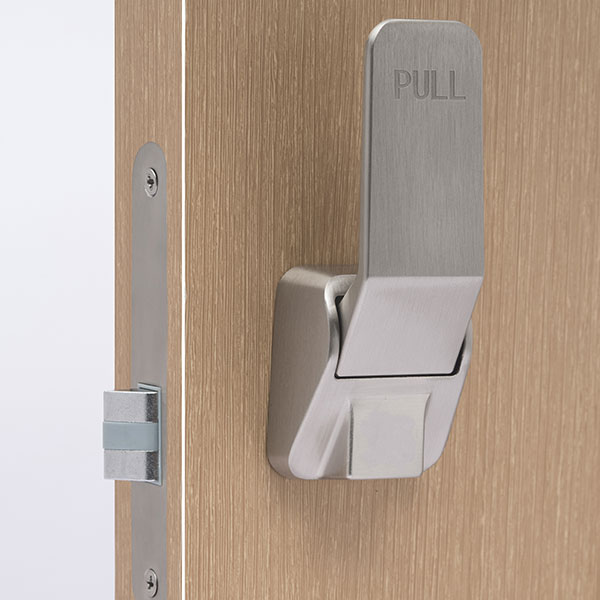

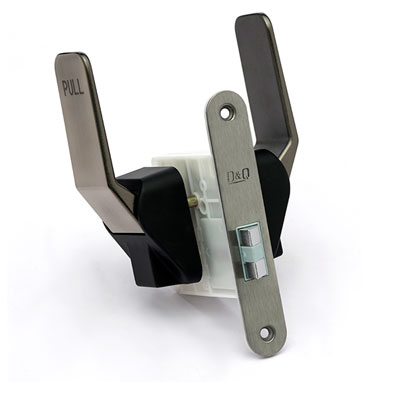

MG3811 Push Pull Mortise Lock

Features

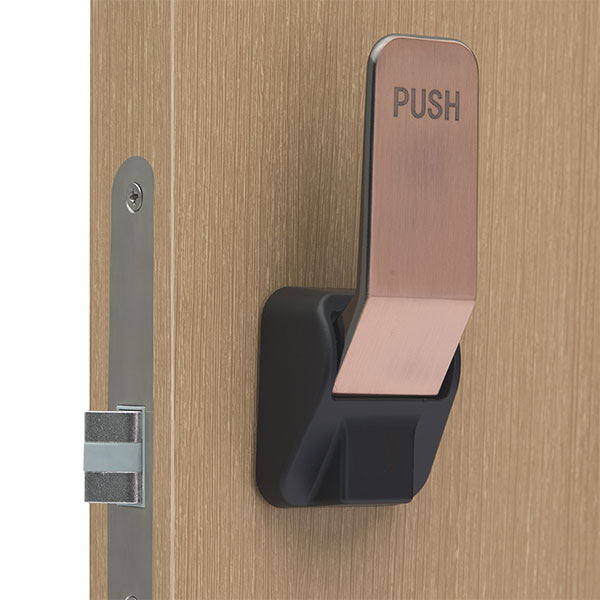

This type of push-pull mortise lock is designed without locking. It is used on doors where locking is prohibited or not required. The shell material of the lock body is POM and the bolt is made of plastic POM and zinc alloy to ensure the safety and less noise. The surface treatment adopts Japanese advanced technology. Various tests are carried out in accordance with Japanese JIS standards to ensure the durability of the lock both from the appearance and structure.

Color

Nickel Plating
Matte Black
Champagne Gold
Custom

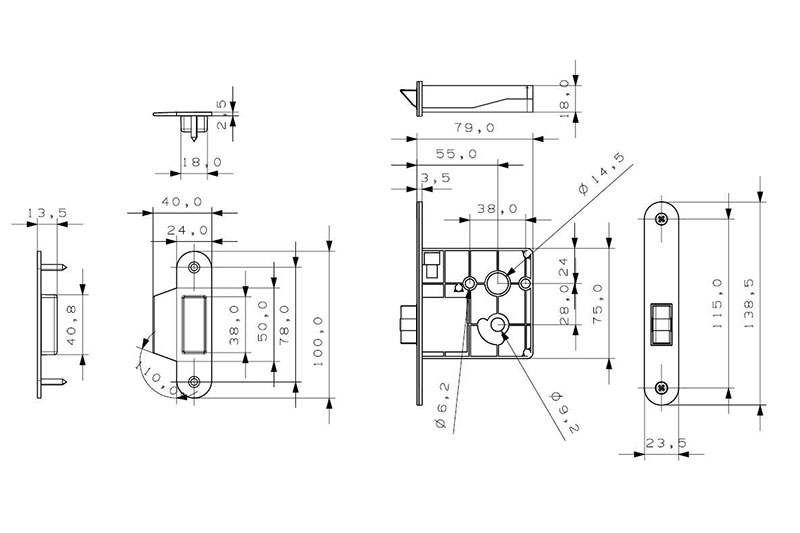

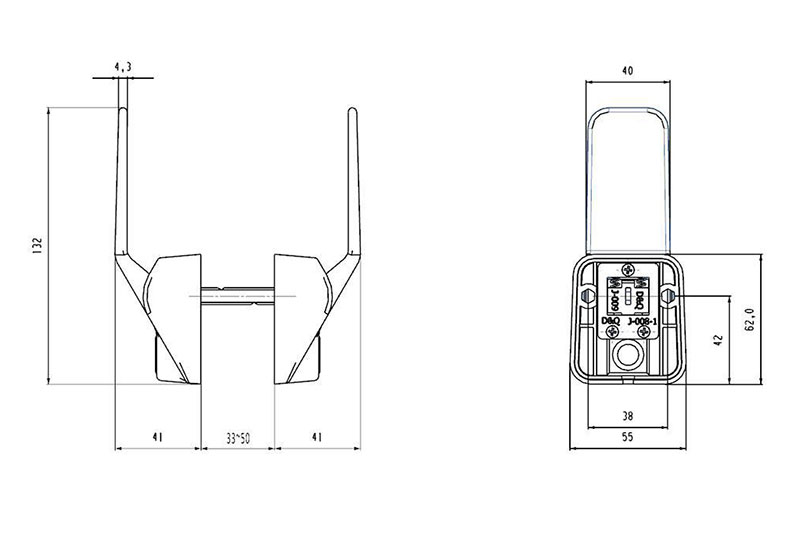

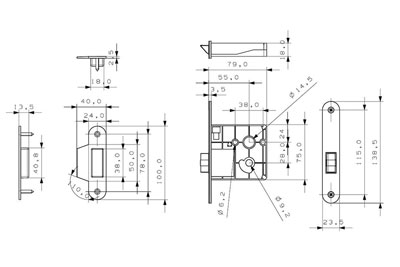

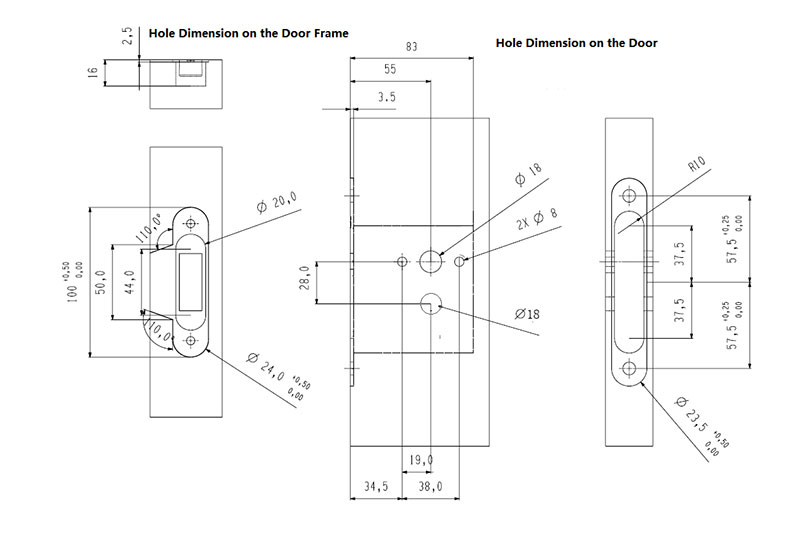

Dimensions

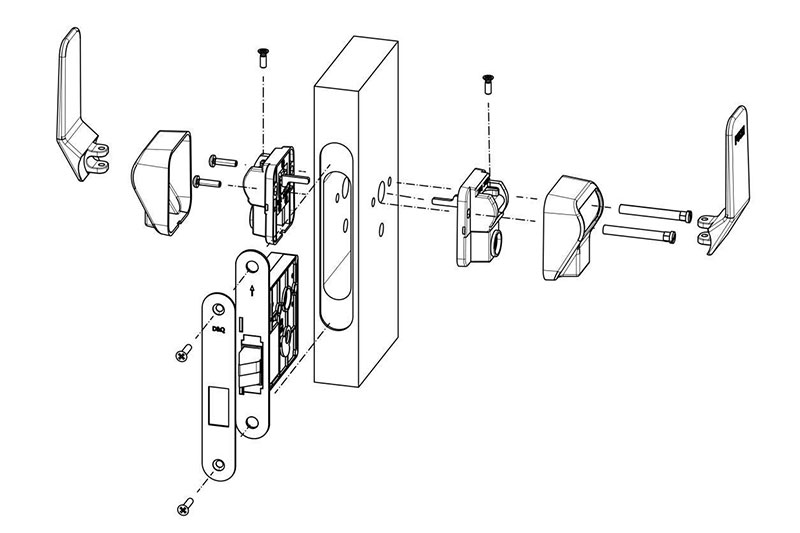

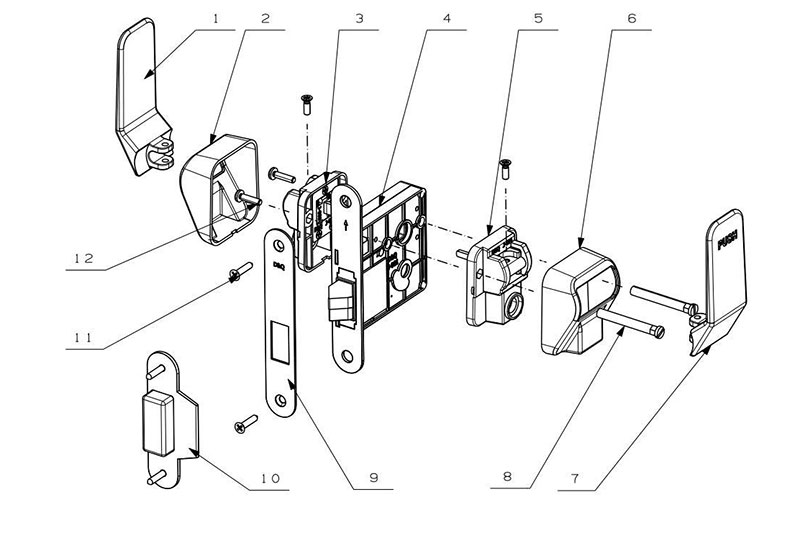

Parts List

No	Name	No	Name
1	Inner Lever Handle	7	Outer Lever Handle
2	Inner Panel	8	Connecting Screw Bolt
3	Inner Panel Holder	9	Plate for Lock Body
4	Lock Body	10	Striking Box
5	Out Panel Holder	11	Screw for Lock Body
6	Outer Panel	12	Screw for Lever Handle

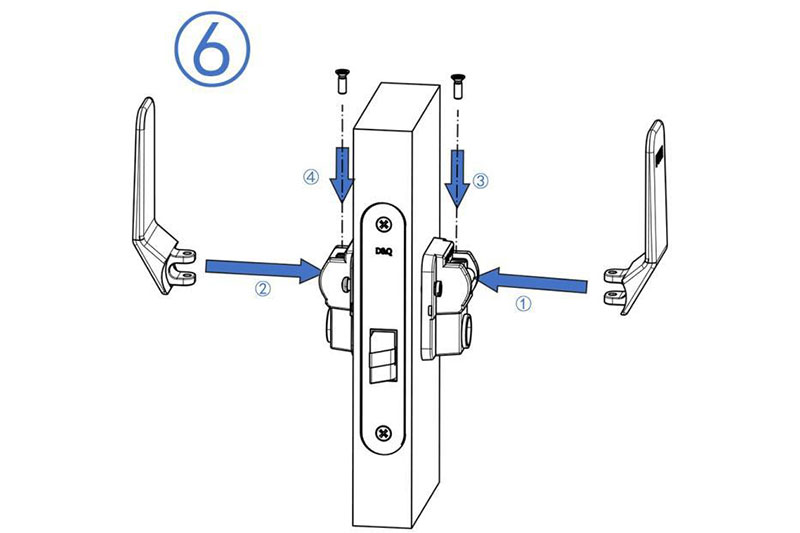

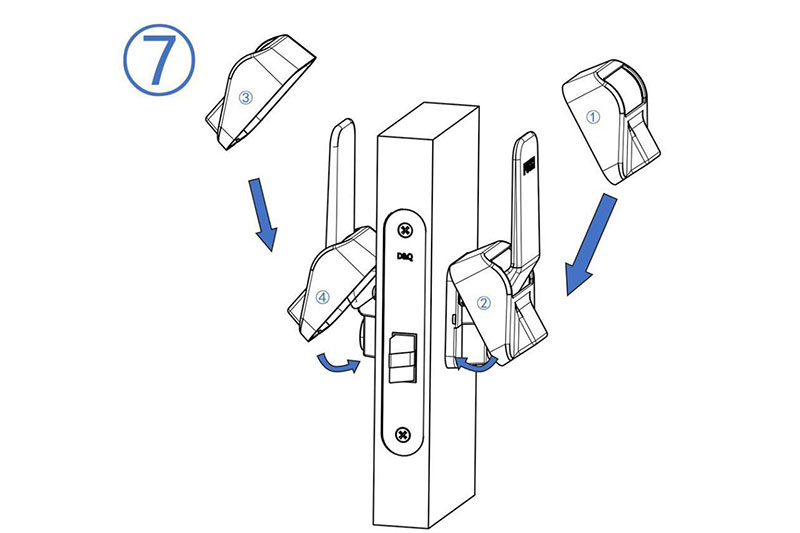

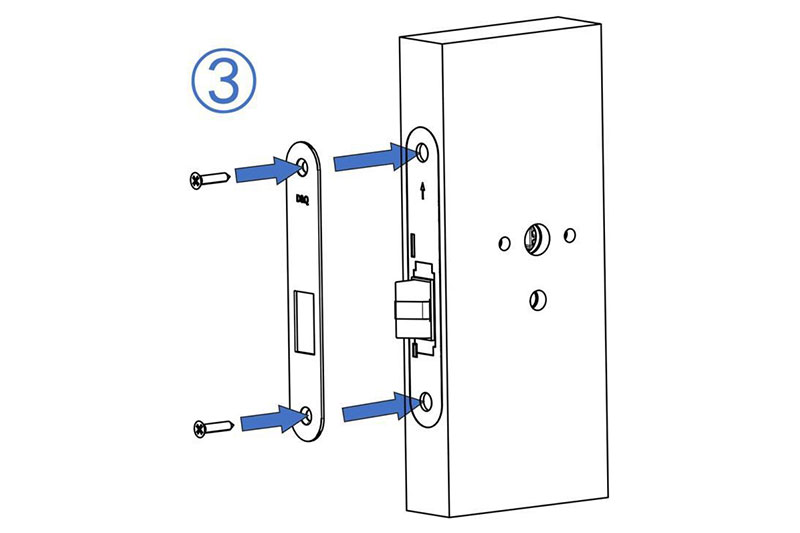

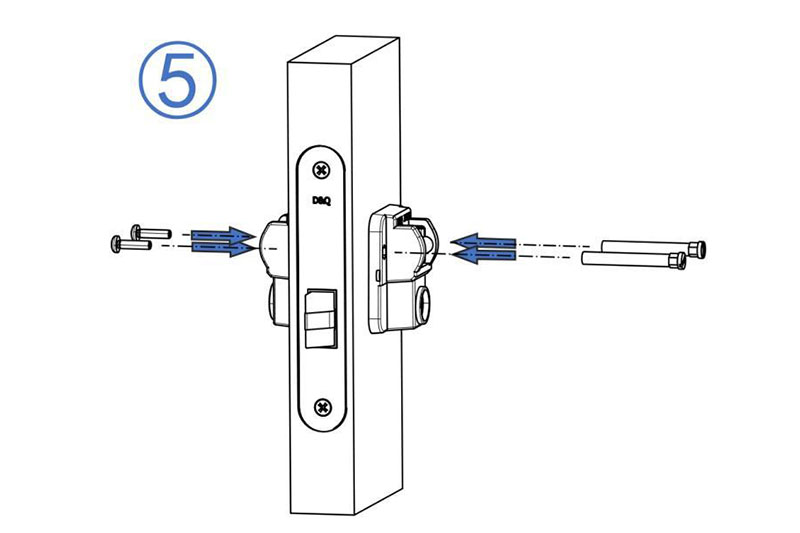

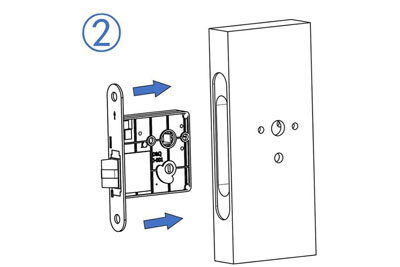

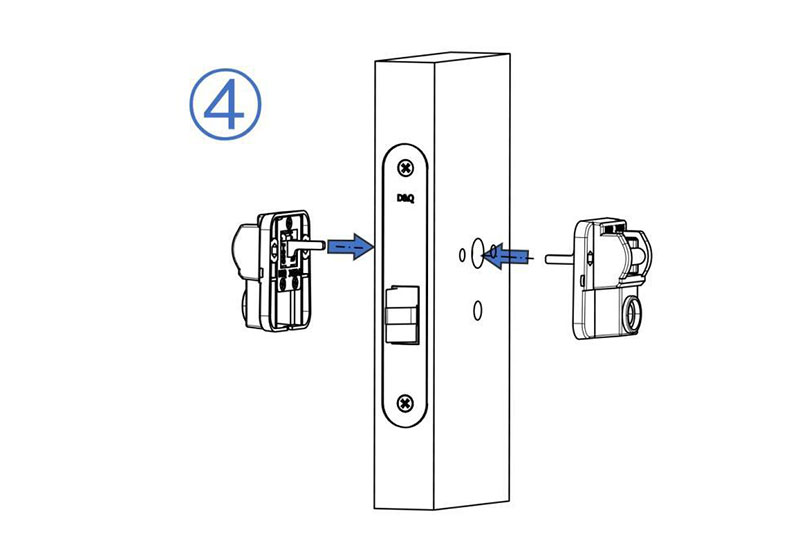

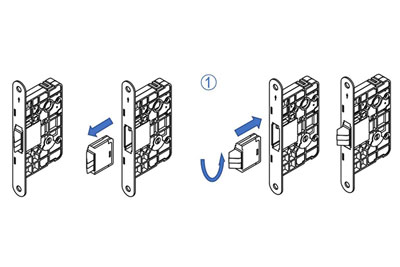

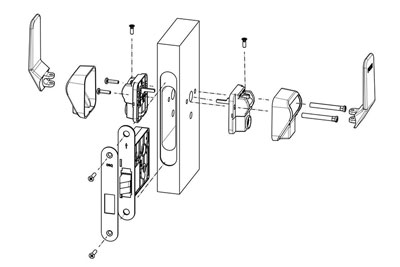

Installation Instructions
