MG4811 Series Push Pull Mortise Lock

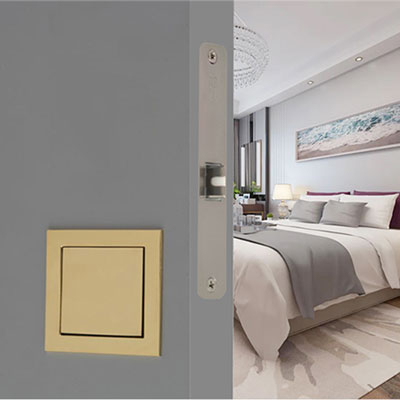

MG4811 Push Pull Mortise Lock

Features

This type of lock is designed without locking. It is used on doors where locking is prohibited or not required. The shell material of the lock body is POM and the bolt is made of plastic POM and stainless steel to ensure the safety and less noise. The appearance is stylish. The surface treatment adopts Japanese advanced technology. Various tests are carried out in accordance with Japanese JIS standards to ensure the durability of the lock both from the appearance and structure.

Color

Nickel Plating
Matte Black

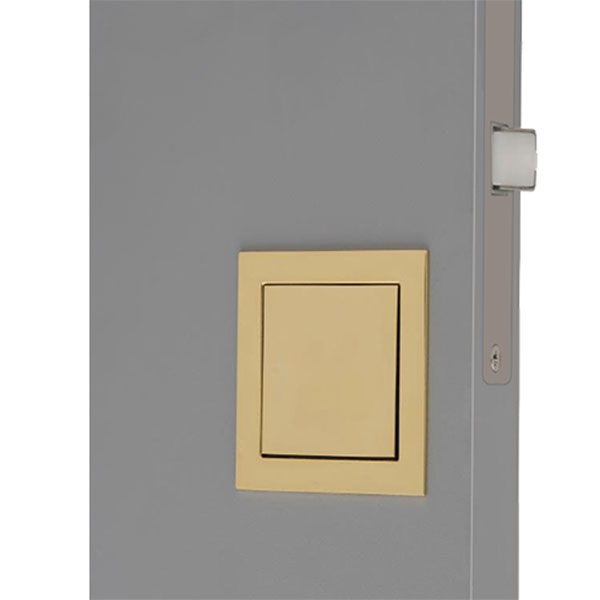

Champagne Gold
Custom

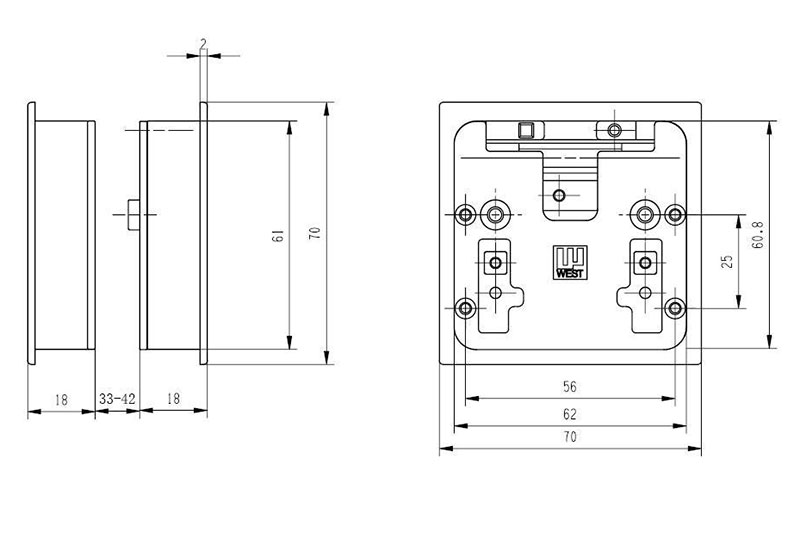

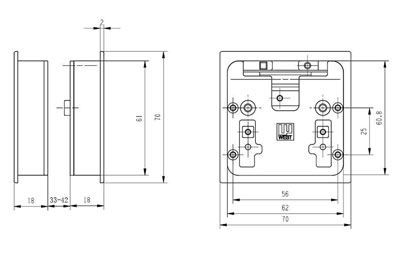

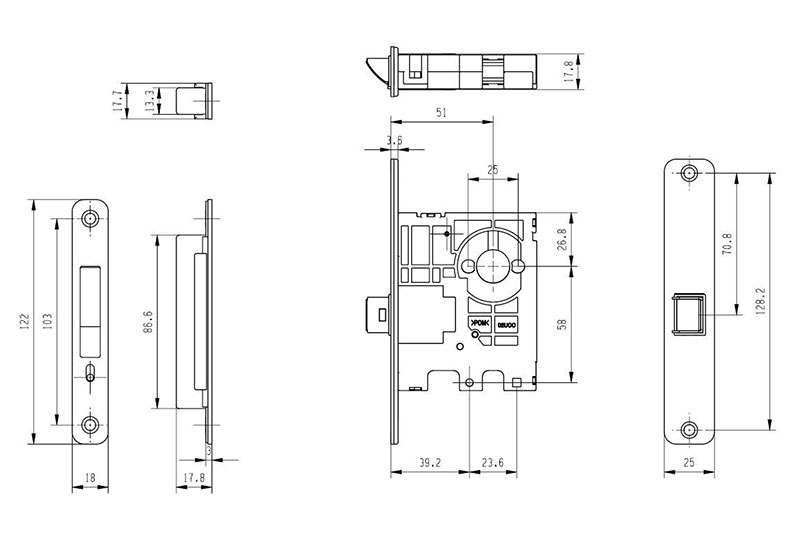

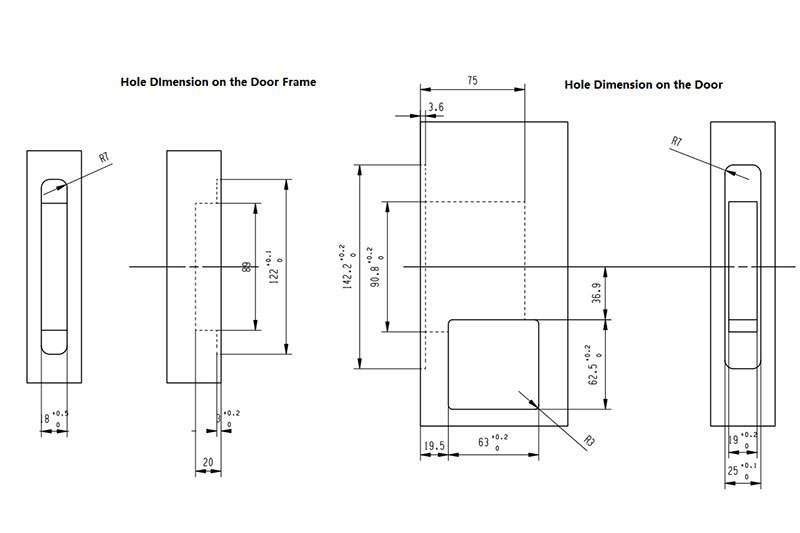

Dimensions

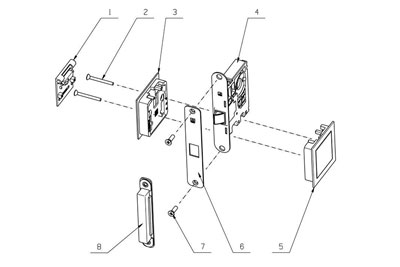

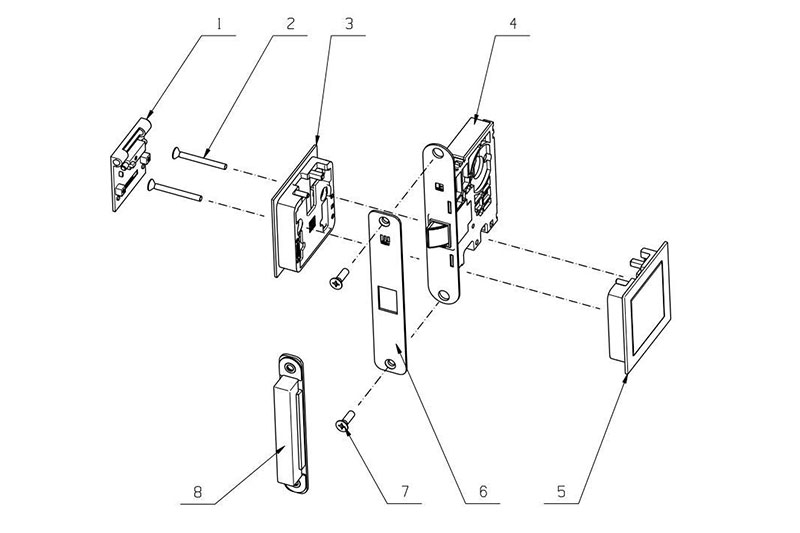

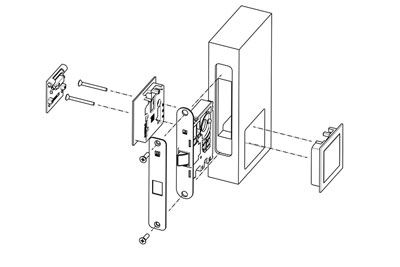

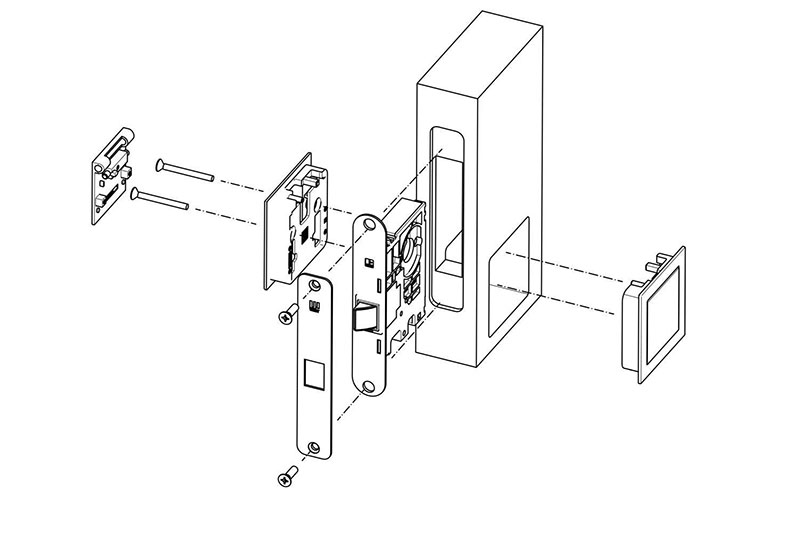

Parts List

No	Name	No	Name
1	Inner Lever Handle	5	Outer Lever Handle
2	Screw	6	Plate for Lock Body
3	Inner Panel Holder	7	Screw for Lock Body
4	Lock Body	8	Striking Box

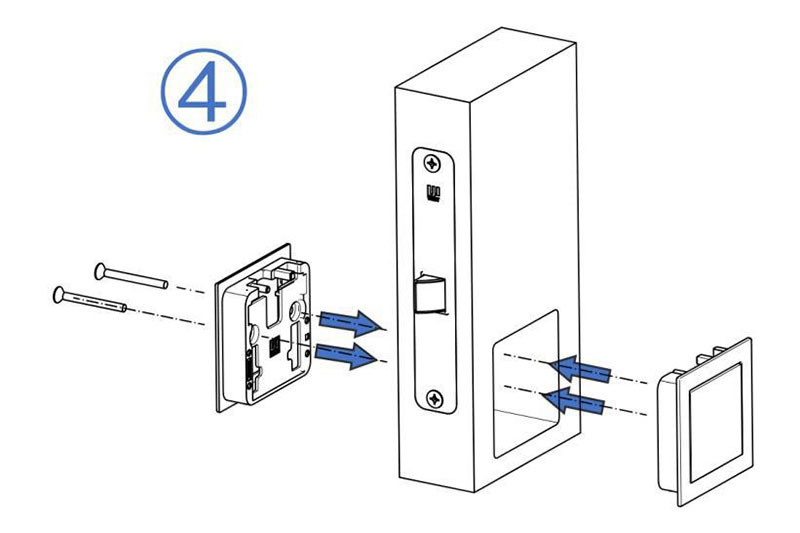

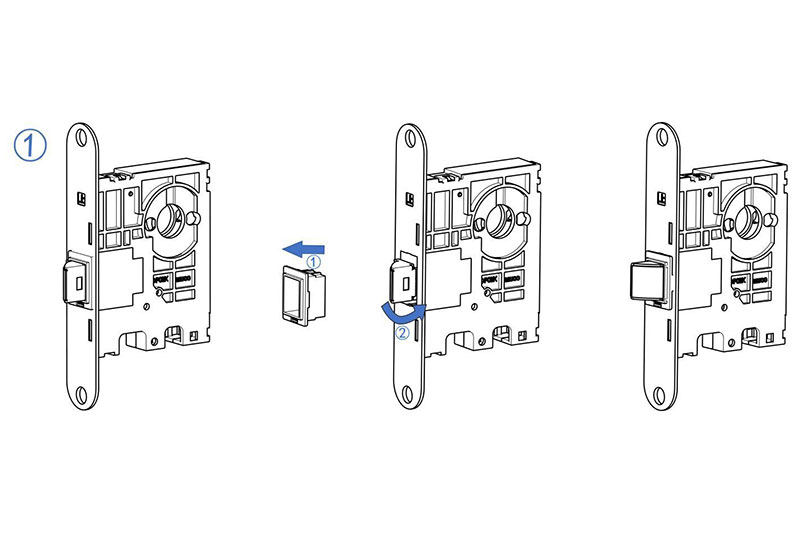

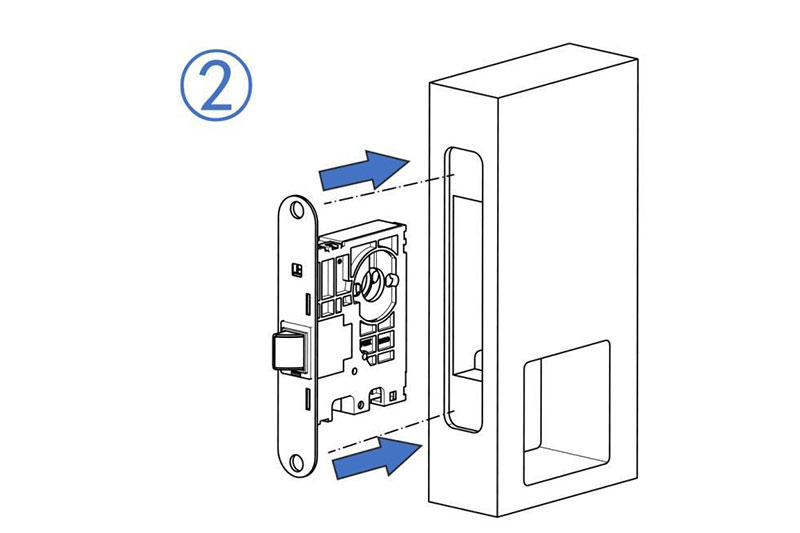

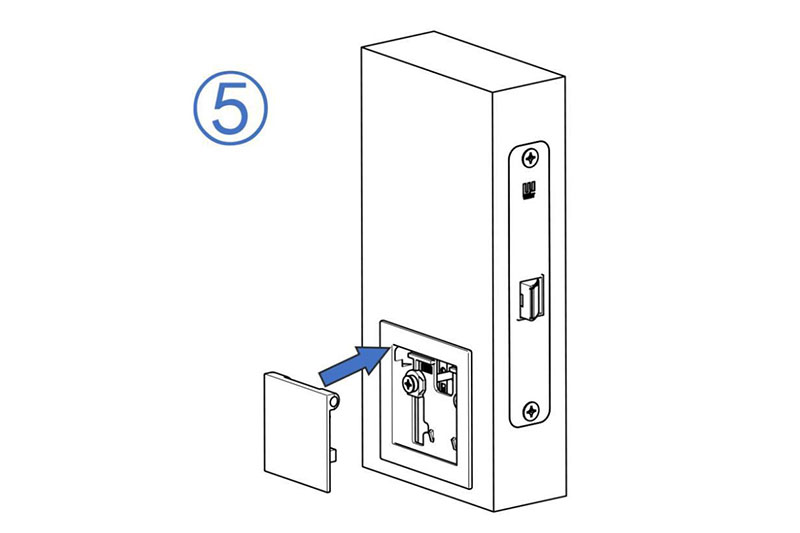

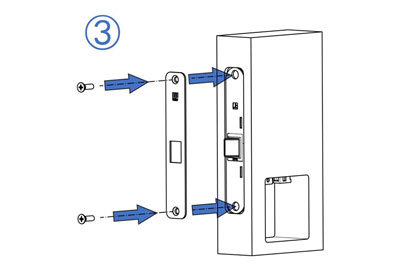

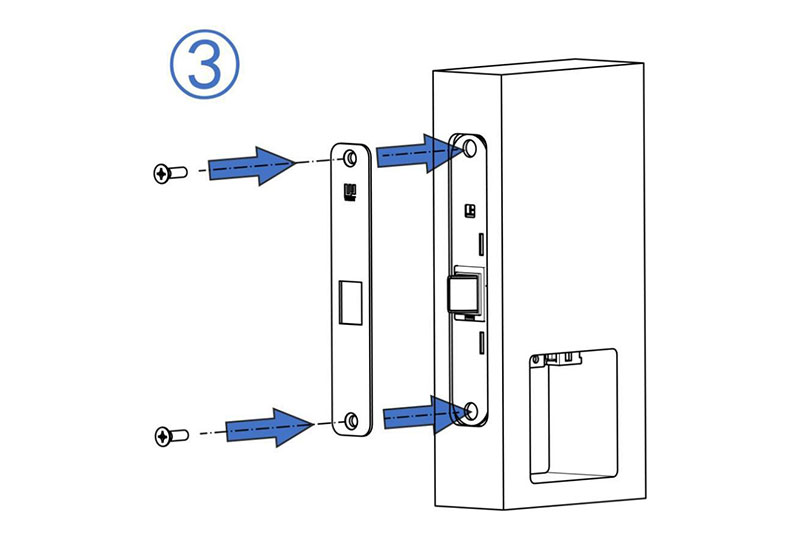

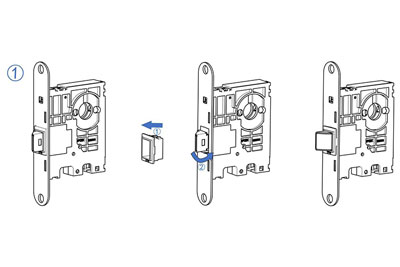

Installation Instructions
