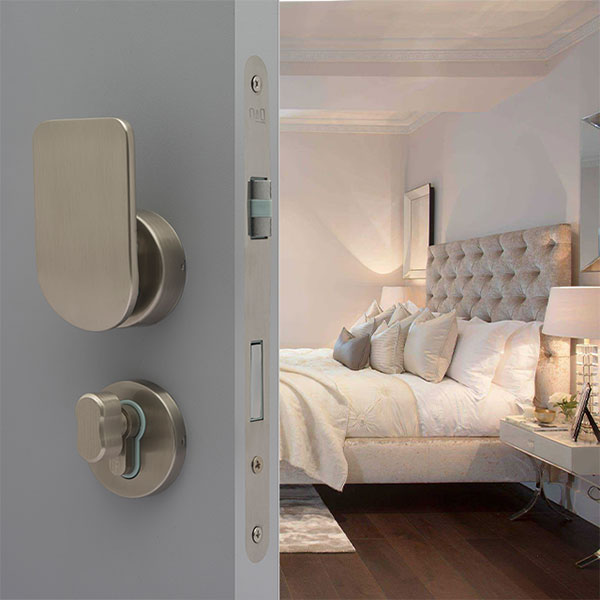

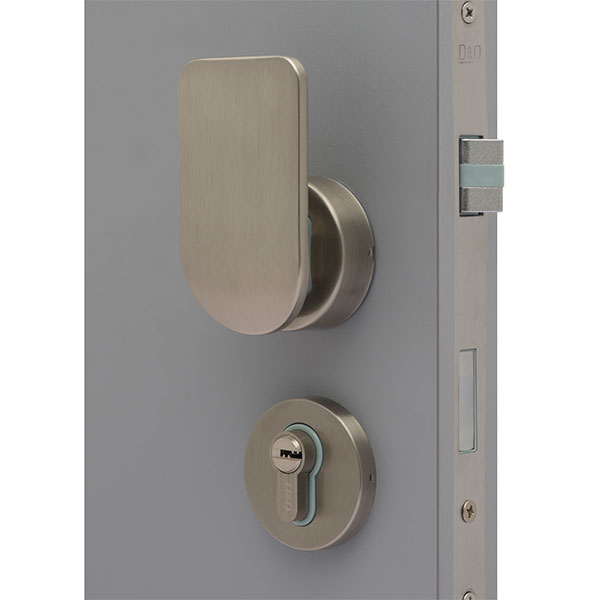

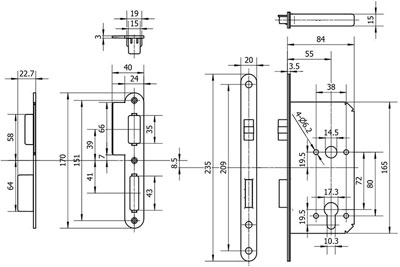

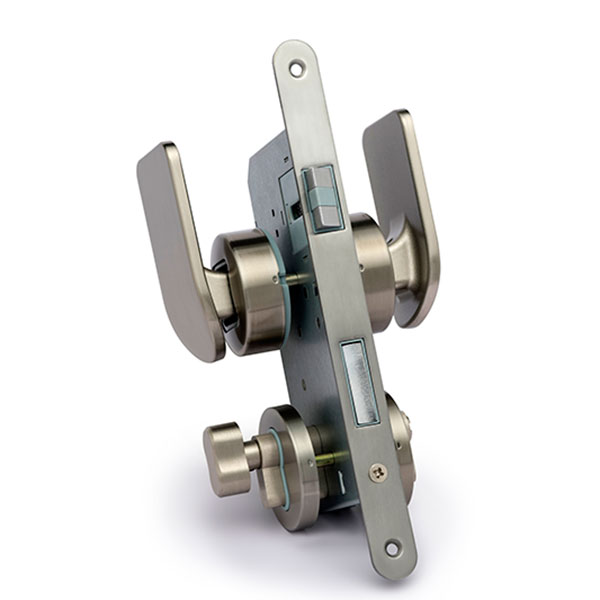

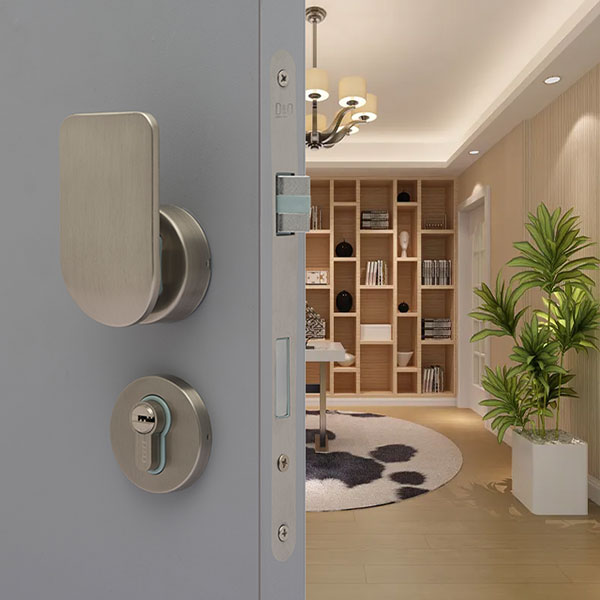

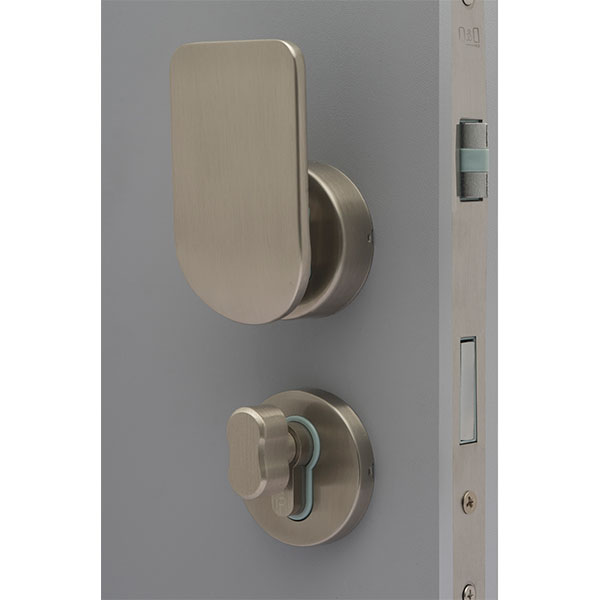

Our MG1814 push pull mortise locks are designed with keys, ensuring safety at the same time enabling convenient door opening. The shells of the lock body adopt galvanized steel plates and the handles are made of aluminum alloy. Comparing with other push pull mortise locks, this model is considerably stronger and safer. Latch Bolts are made of POM and zinc alloy, which can ensure good muting effect. Our locks adopt Japanese electroplating and painting technologies, giving the locks better color adhesion, superior corrosion resistance, and higher durability. Lock colors can be customized.

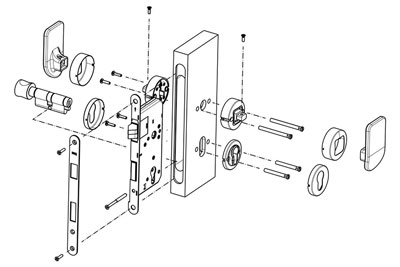

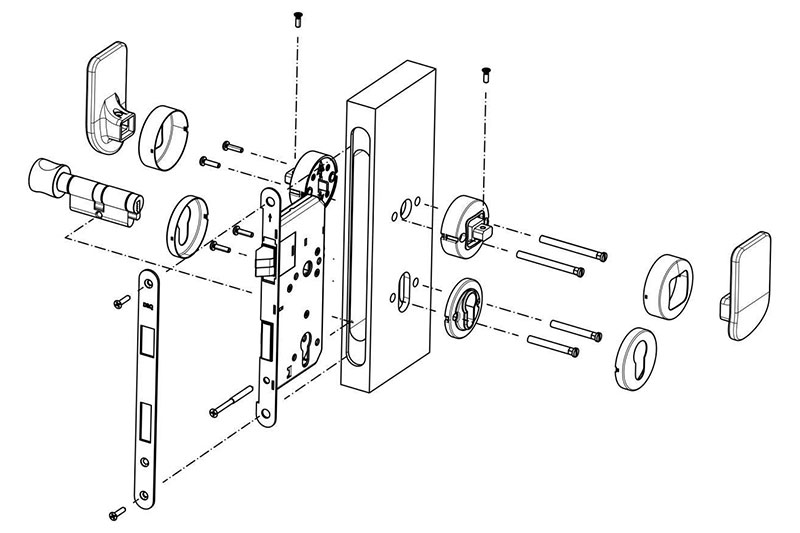

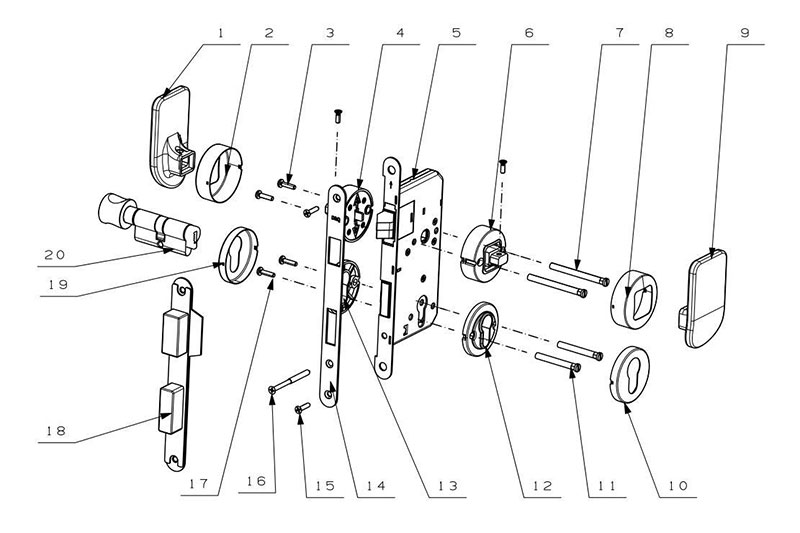

Lever fixing screw
Plate fixing screw
Outer thumb turn panel
Inner thumb turn panel
Outer escutcheon plate
Inner escutcheon plate
Cylinder fitting screw
Outer Lever Handle
Inner Lever Handle

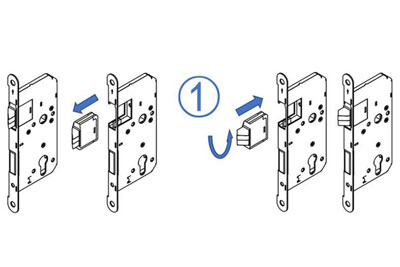

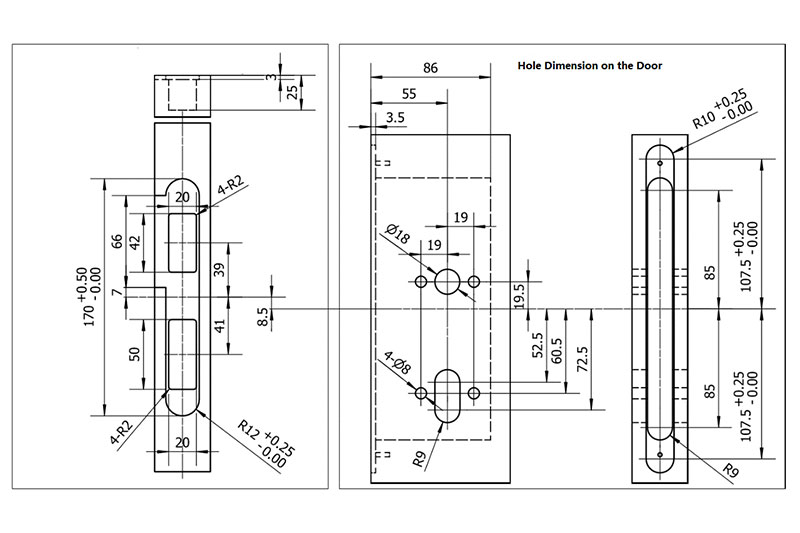

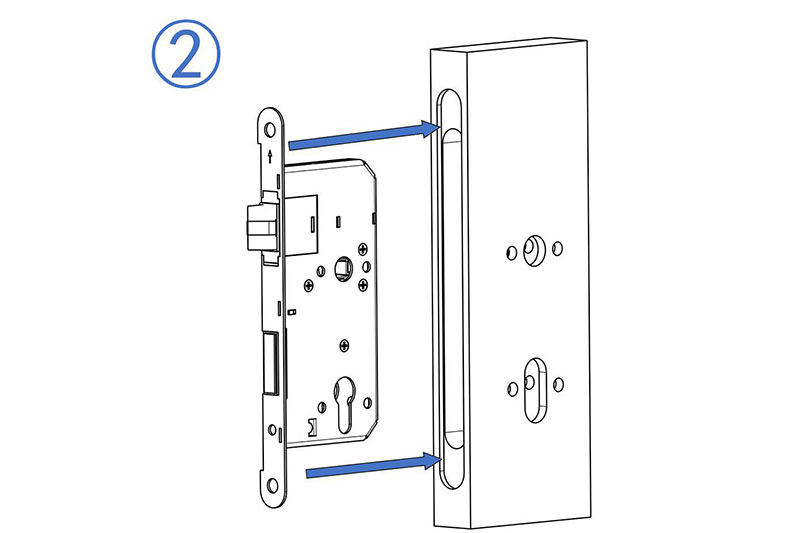

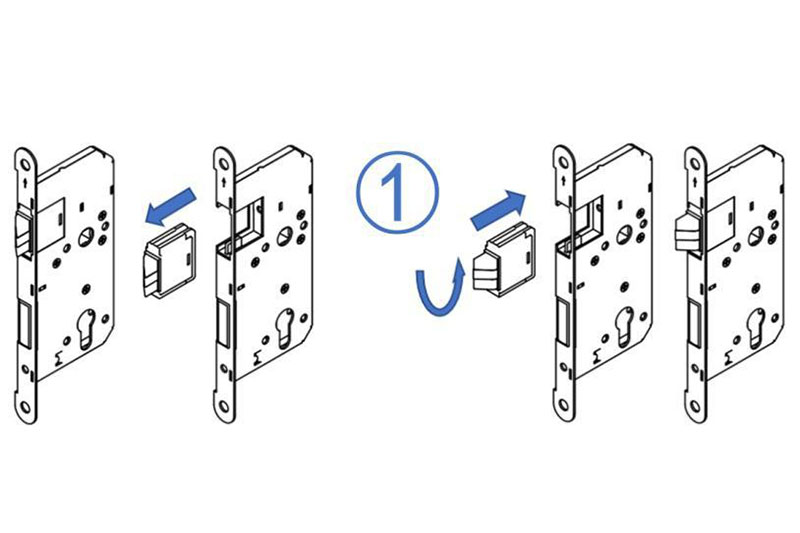

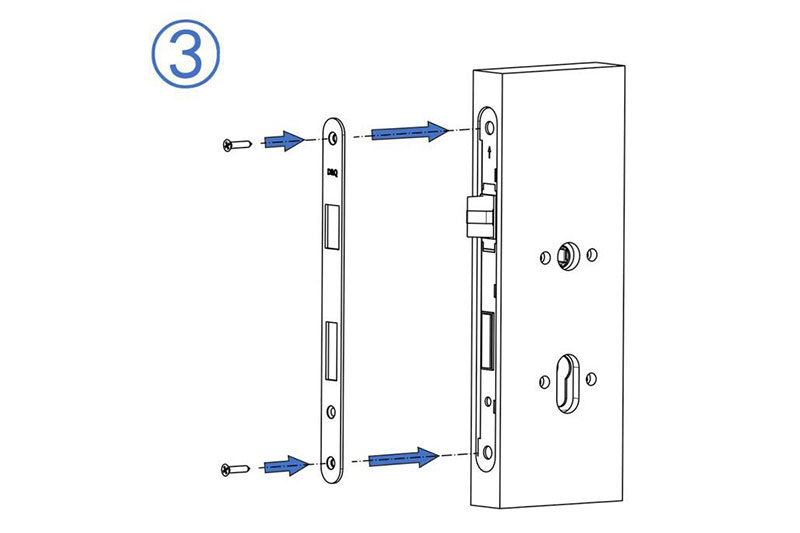

Determine the direction of door opening. Put the lock body into the set hole and make sure the latch bolt is on the upper side and dead bolt is on the lower side. Make sure the inclined surface of the latch bolt is facing the direction of door closing (If the direction of inclined surface is wrong， pull the latch bolt out of lock body and rotate it by 180°. Then insert it back into the lock body), Install the front plate and tighten the screws.

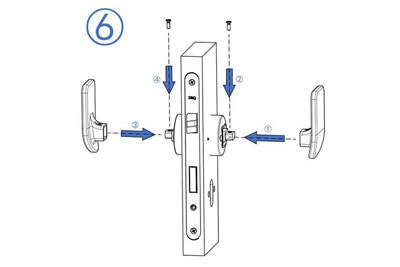

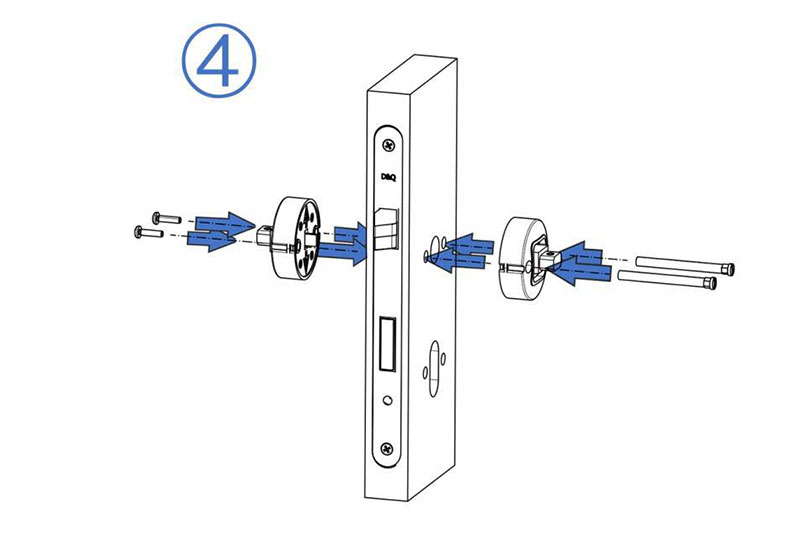

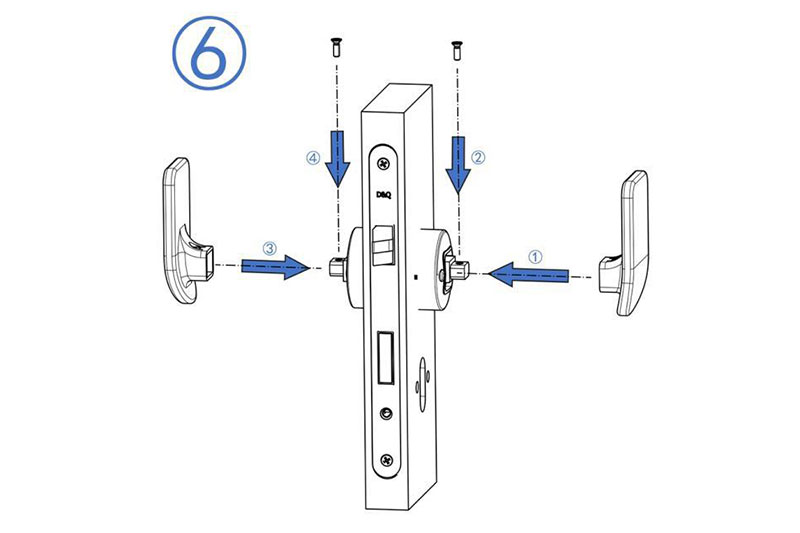

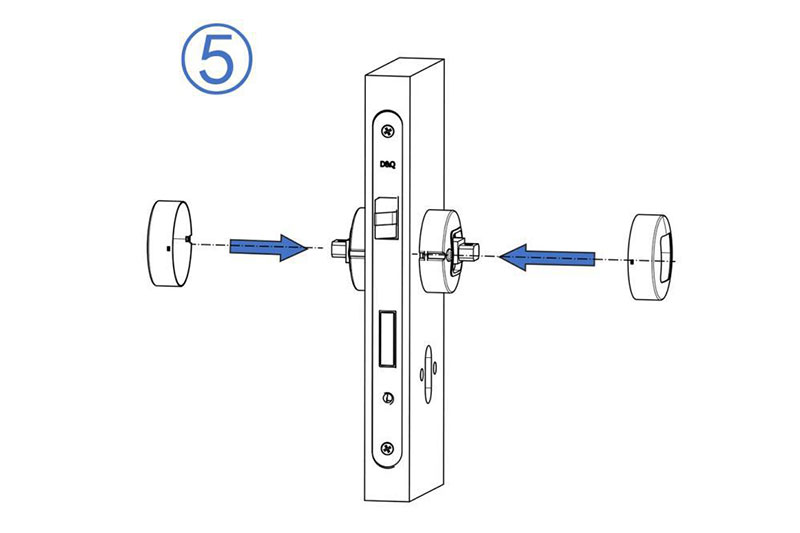

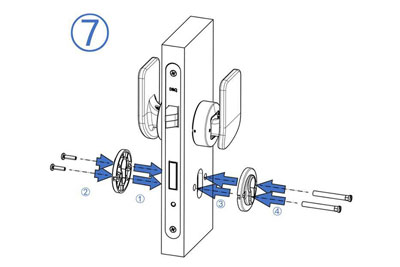

Inward opening door: push from outside and pull from inside. After installing the push-pull escutcheon panels, install the lever handles (fixed screws hole upwards) and then tighten the screws. Outward opening door: push from inside and pull from outside. After installing the push-pull escutcheon panels, install lever handles (fixed screws hole upwards) and then tighten the screws. (*Notice when installing push - pull escutcheon panels: make sure the push arrow on push plates is pointing upwards and the pull arrow on pull plates is upwards.)

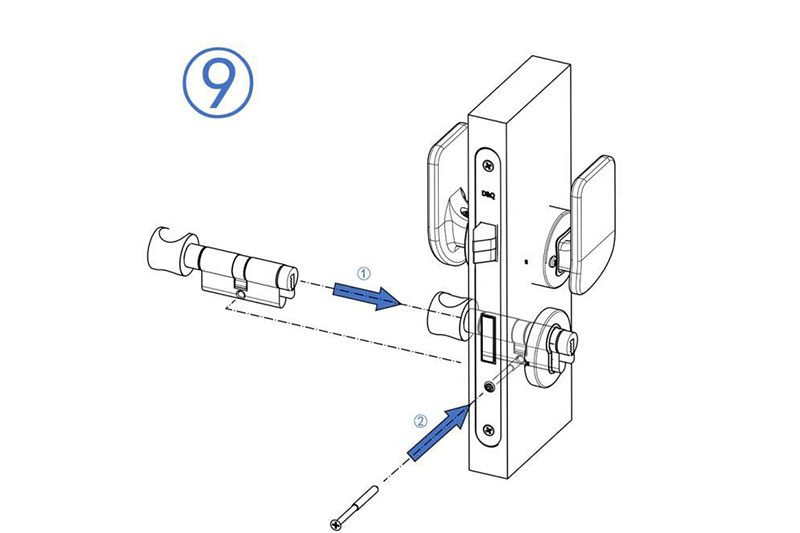

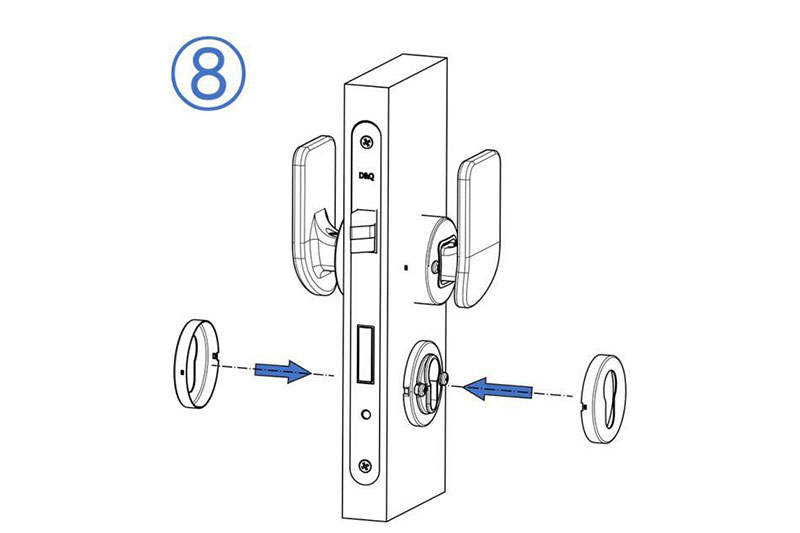

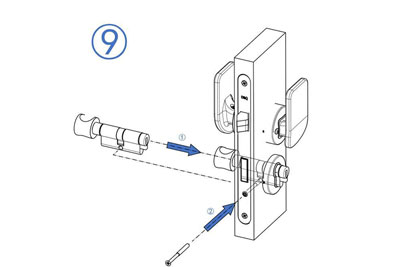

Install cylinder thumbturn plates and tighten screws. Set the lock cylinder in the hole on the inside plate through the lock body and outside plate, and then fix the cylinder from the position of the armored front with cylinder screws.
Install the striking plate on the corresponding position of the door frame and make sure that latch bolt and dead bolt can move in and out freely
Test after installation: Push and pull the lever handles, press the latch bolt to the inclined surface direction of the latch bolt. If the latch bolt can work flexibly, the installation is completed. If not, please reset all components.
