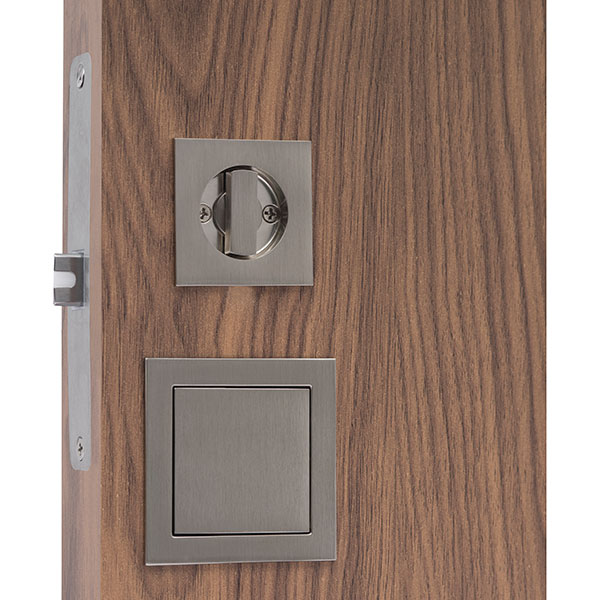

MG4813 Series Push Pull Mortise Lock

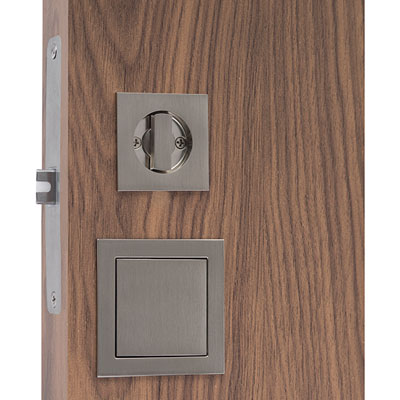

MG4813 Push Pull Mortise Lock

Features

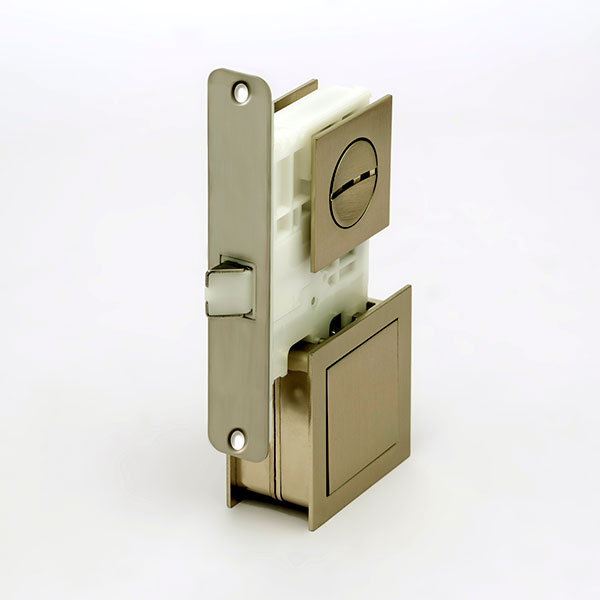

This type of lock adopts a key less locking design. It could be locked with a knob from inside and unlocked with a coin from outside. When there is a state of emergency and the door is locked, it could be quickly unlocked from outside. The lock body shell is made of POM and the handle is made of aluminum alloy to ensure the firmness of the lock. The bolt is made of plastic POM and stainless steel which reduces the noise and achieves a better mute effect. The appearance is stylish .The surface treatment adopts Japanese advanced technology. Various tests are carried out in accordance with Japanese JIS standards to ensure the durability of the lock both from the appearance and structure

Color

Nickel Plating
Matte Black
Champagne Gold
Custom

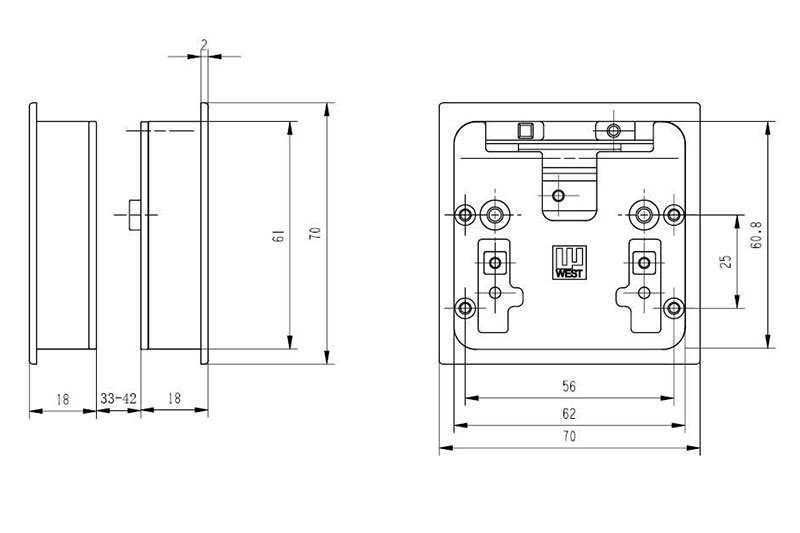

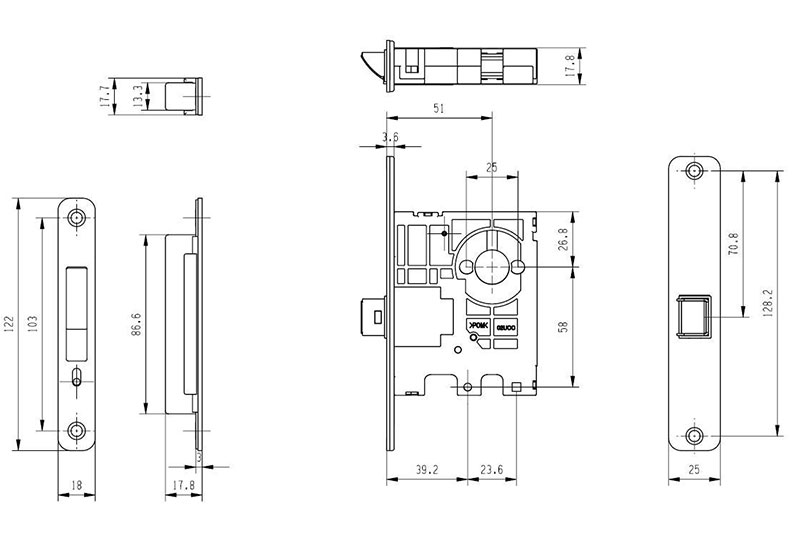

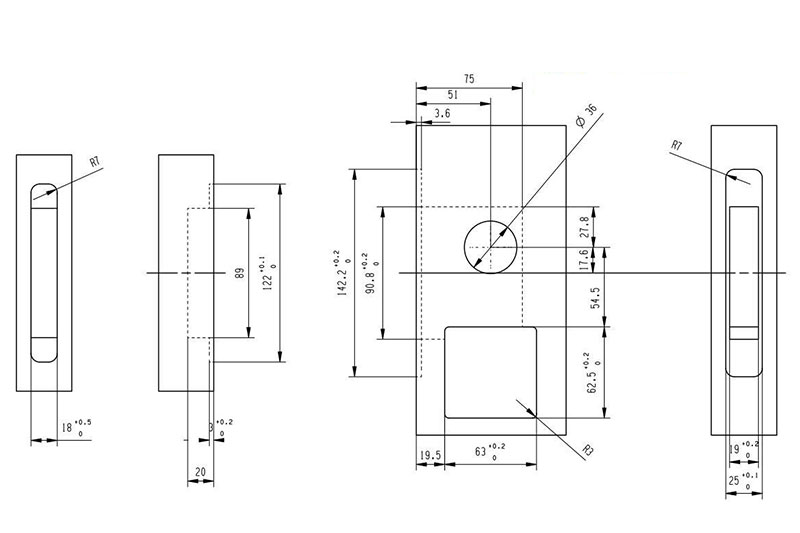

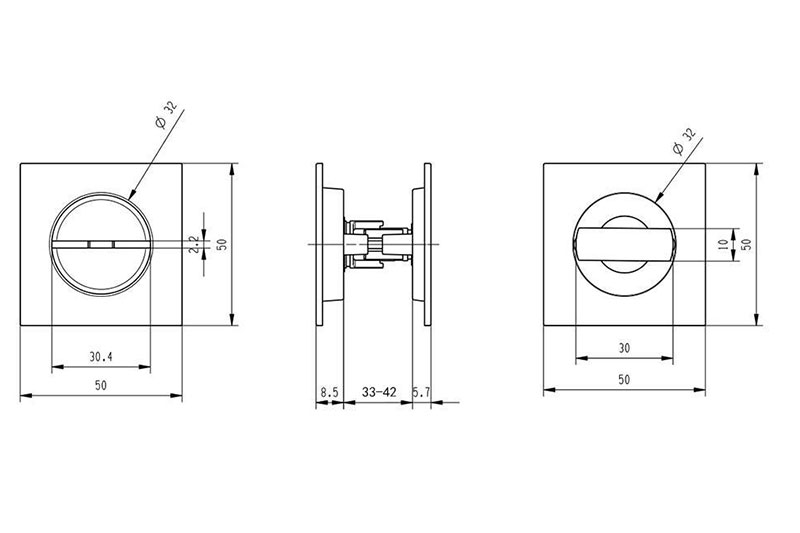

Dimensions

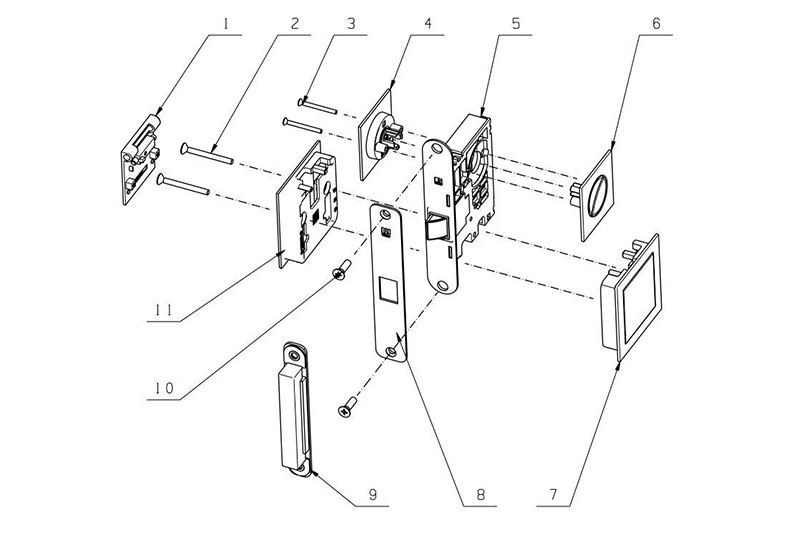

Parts List

No	Name	No	Name
1	Inner Lever Handle	7	Outer Lever Handle
2	Screw for Lever Handle	8	Plate for Lock Body
3	Screw for Knob	9	Striking Box
4	Inner Knob	10	Screw for Lock Body
5	Lock Body	11	Inner Lever Handle Holder
6	Outer Knob

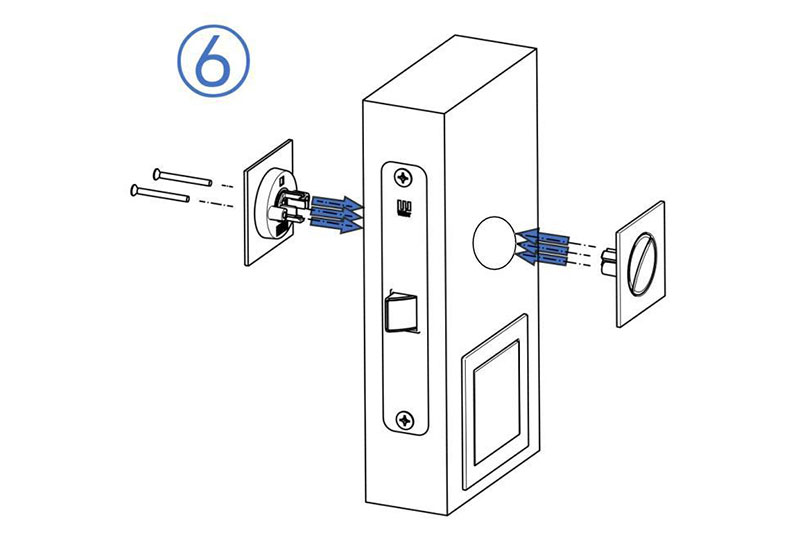

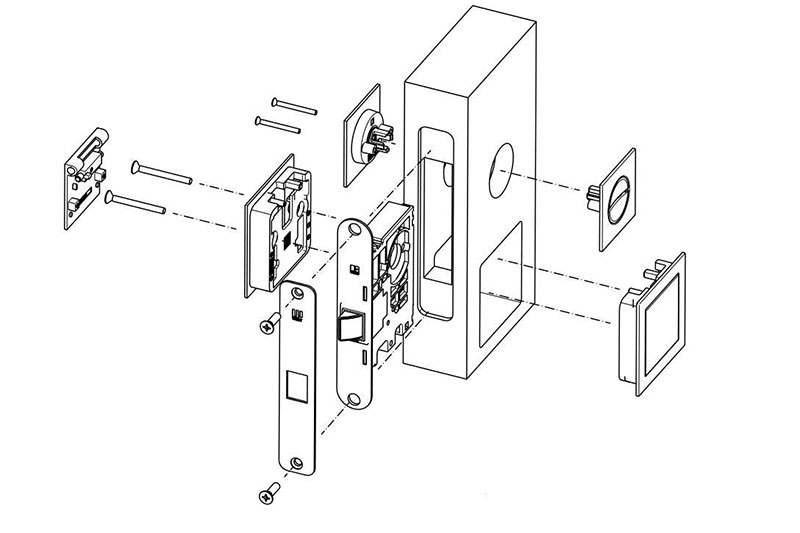

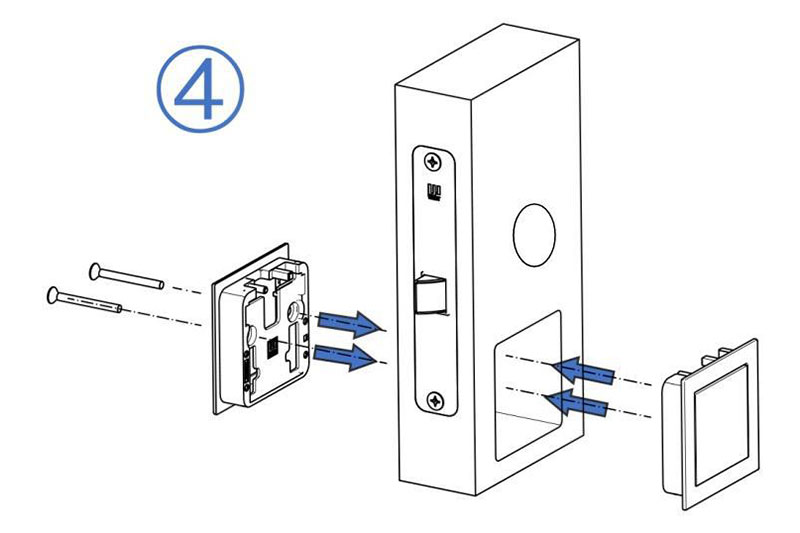

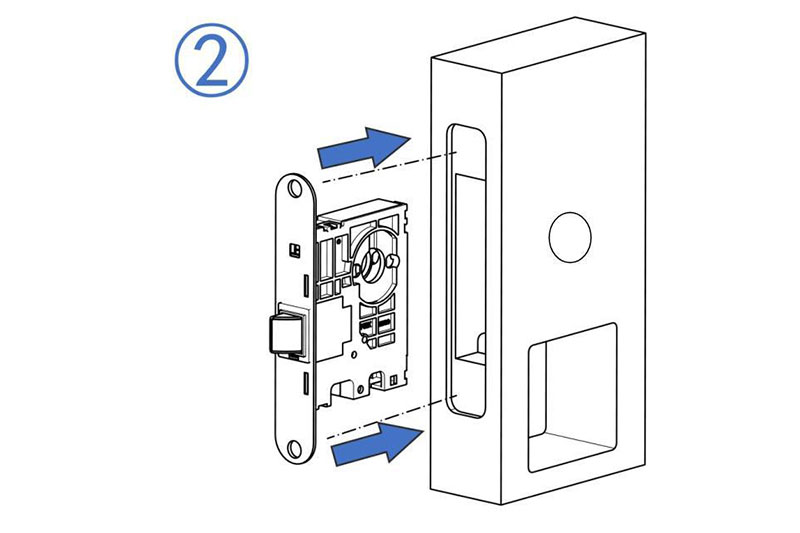

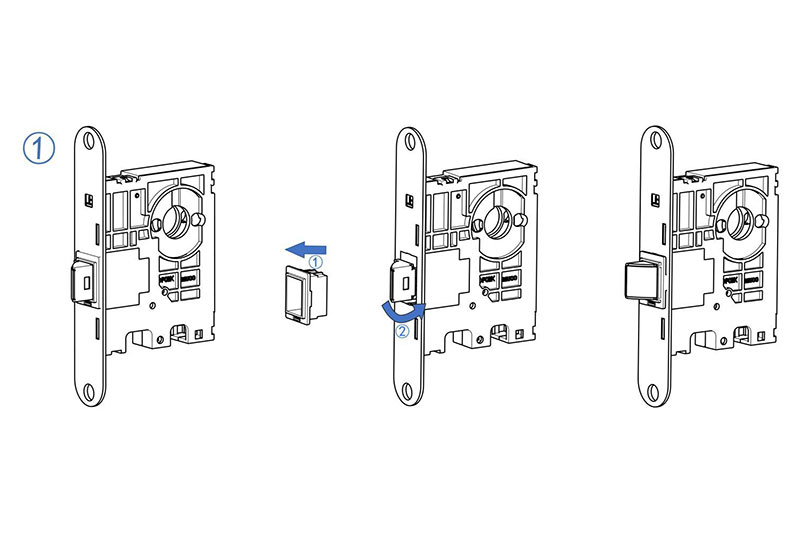

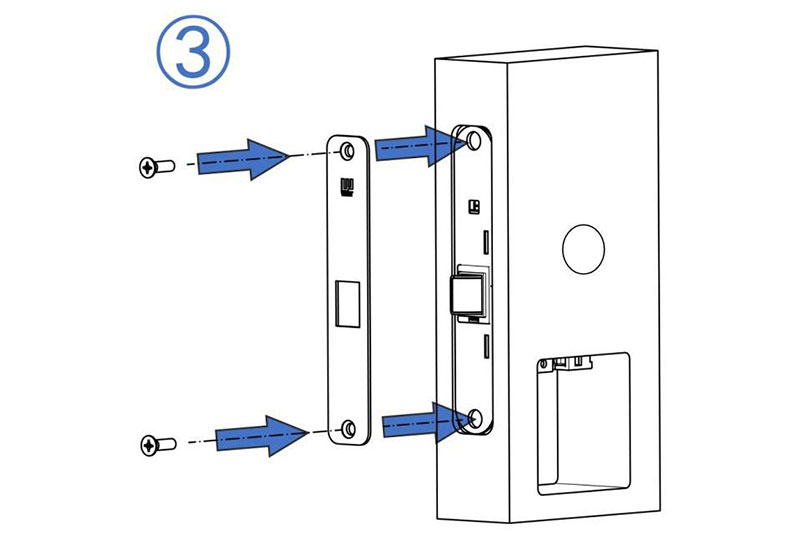

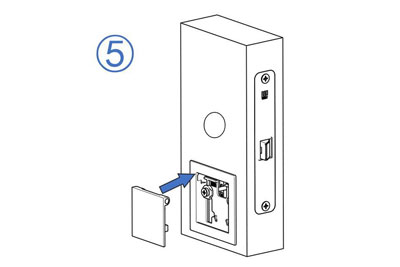

Installation Instructions
