MPF1611 Series Door Handle Lock

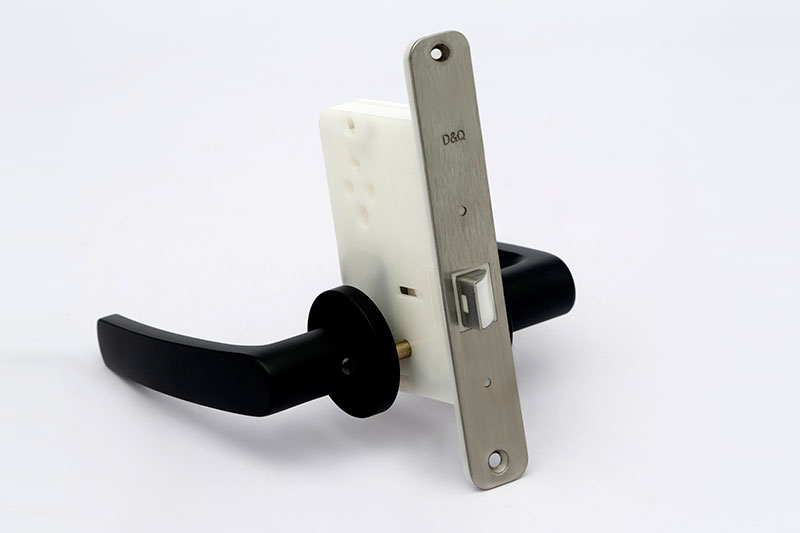

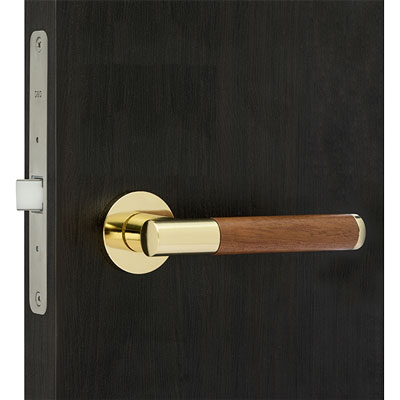

MPF1611 Door Handle Lock

Features

This type of mortise lever handle lock is designed without locking. It is used on doors where locking is prohibited or not required. The shell material of the lock body is POM and the bolt is made of plastic POM and stainless steel to ensure the safety and less noise. The appearance is stylish and uses a sleek design. The surface treatment adopts Japanese advanced technology. Various tests are carried out in accordance with Japanese JIS standards to ensure the durability of the lock both from the appearance and structure

Color

Nickel Plating
Matte Black
Champagne Gold
Custom

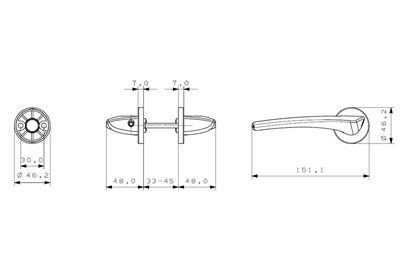

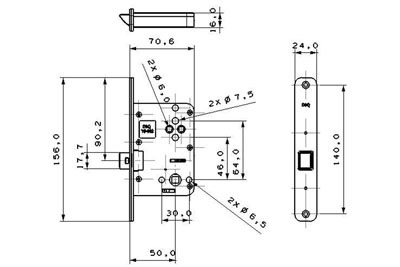

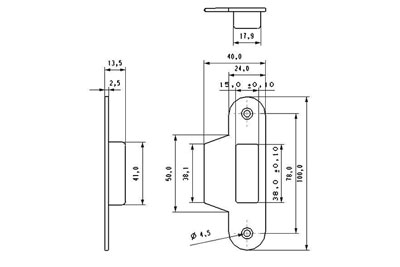

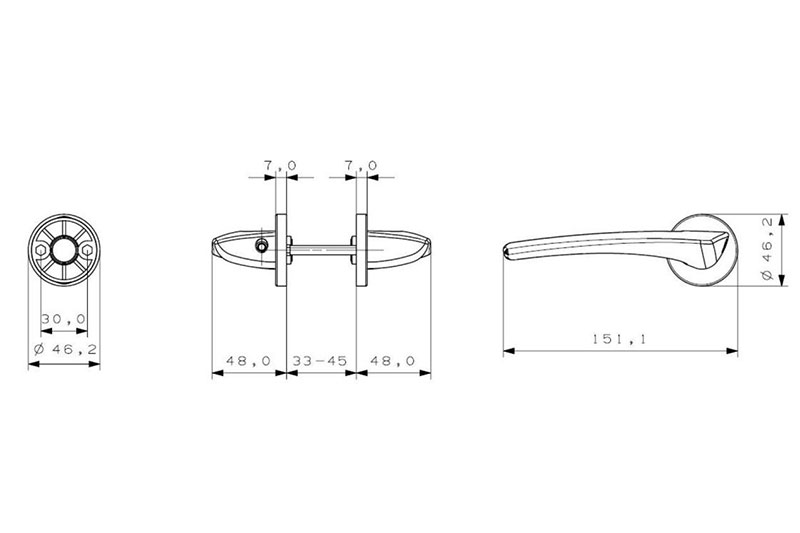

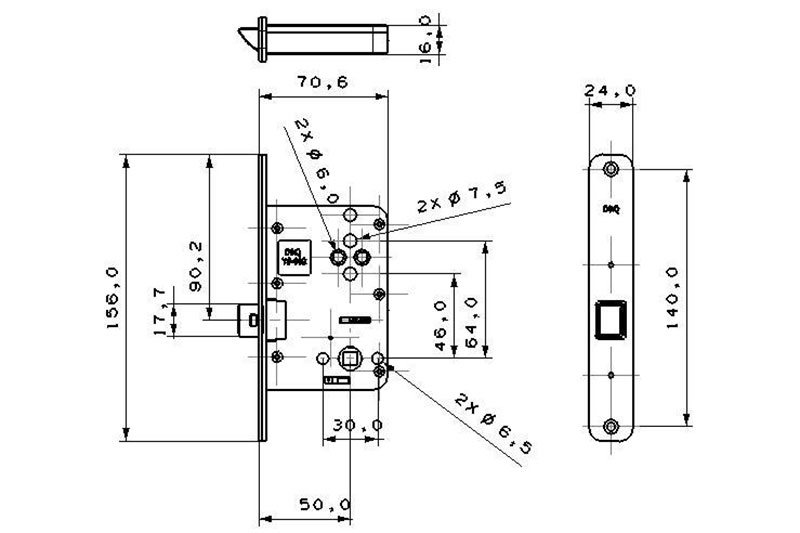

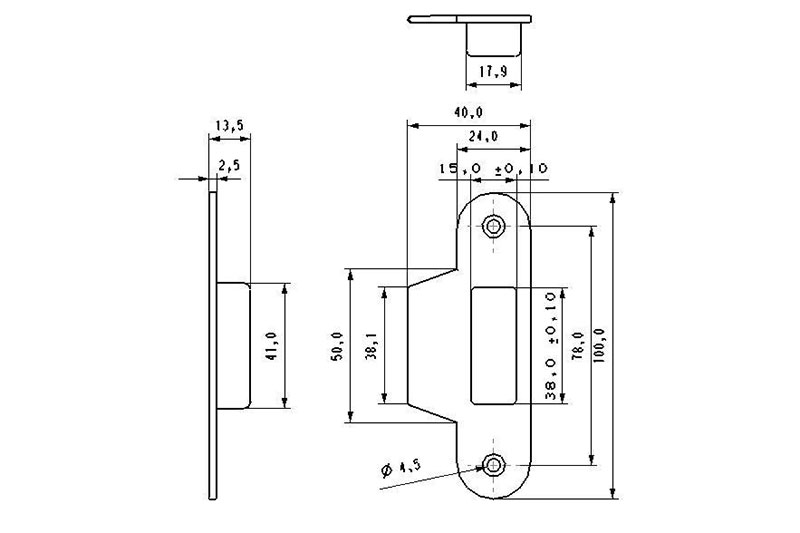

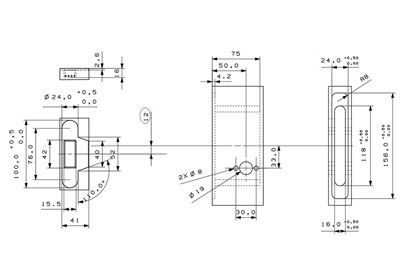

Dimensions

Parts List

No	Name	No	Name
1	Inner Lever Handle	7	Outer Lever Handle
2	Inner Panel for Lever Handle	8	Outer Panel for Lever Handle
3	Screw	9	Inner Holder for Lever Handle
4	Lock Body	10	Plate for Lock Body
5	Outer Holder for Lever Handle	11	Striking Box
6	Connecting Screw Bolt	12	Fastening Screw

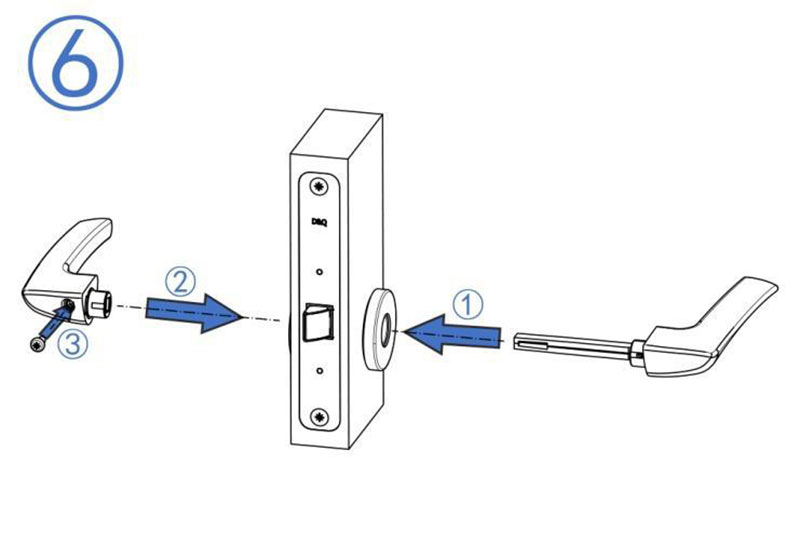

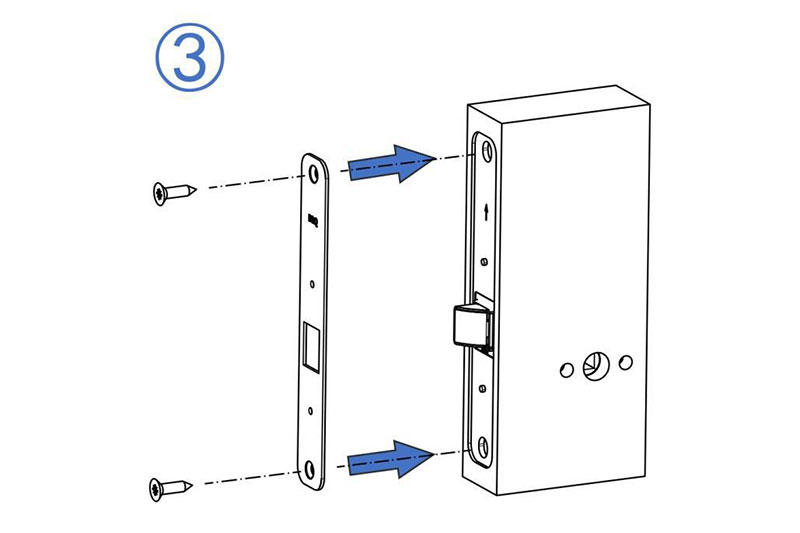

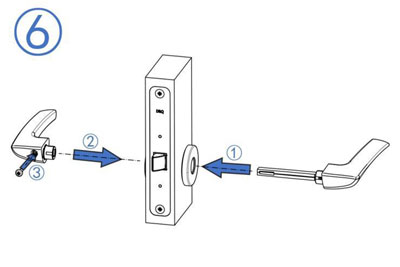

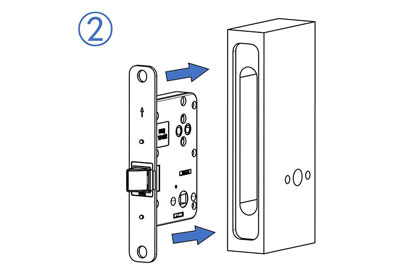

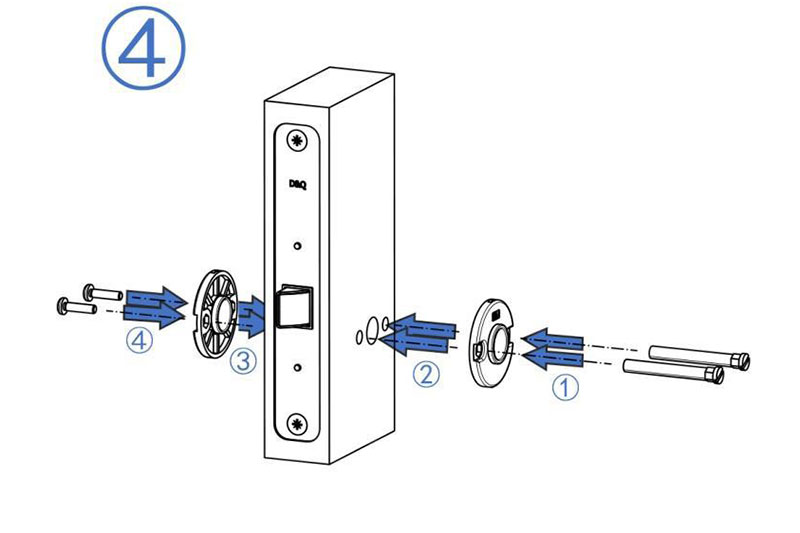

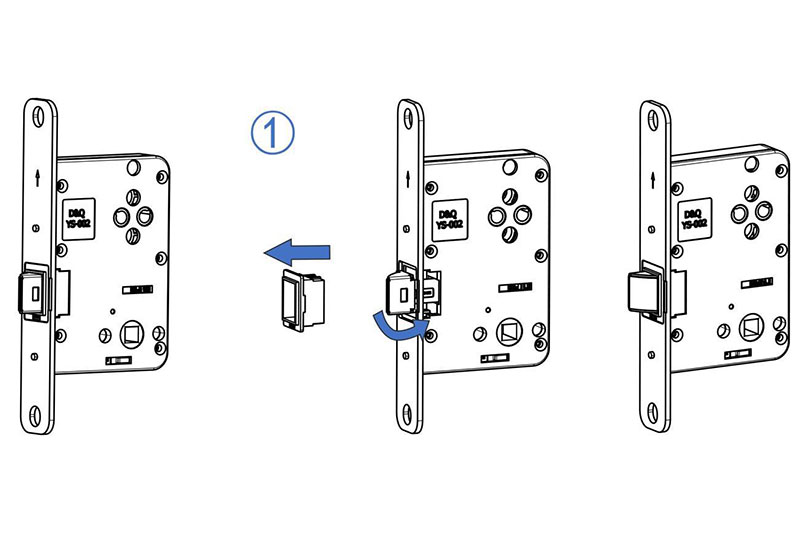

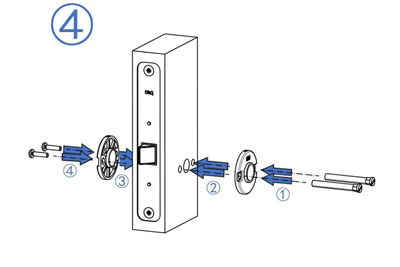

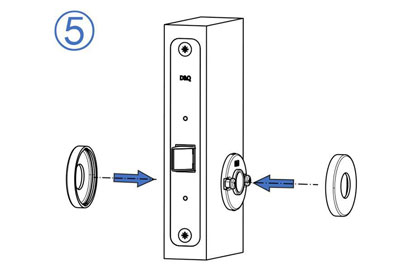

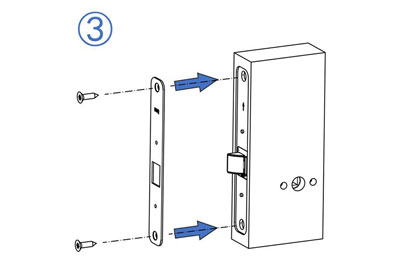

Installation Instructions

Details
