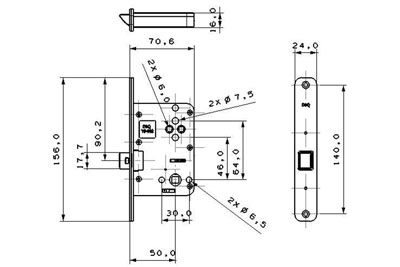

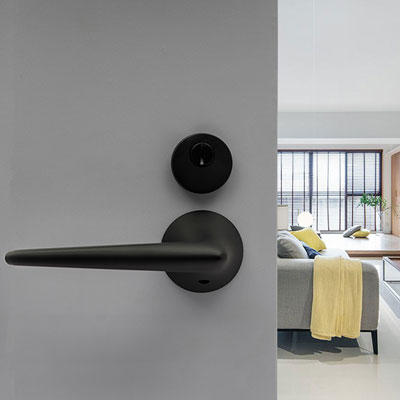

- MPN1613 Door Lever Lock

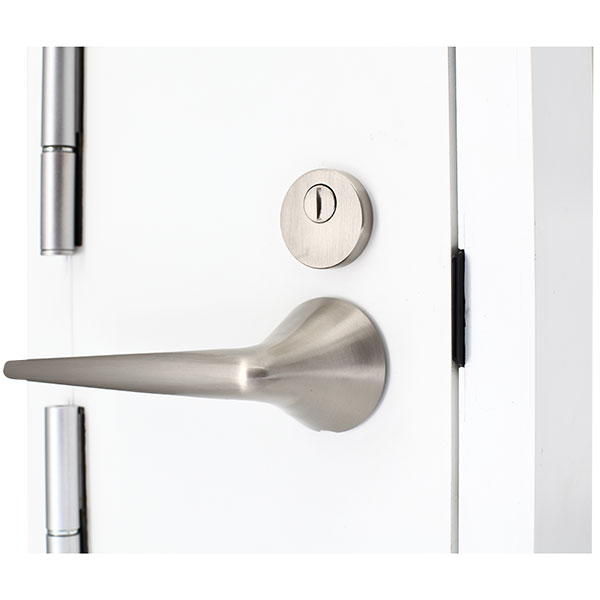

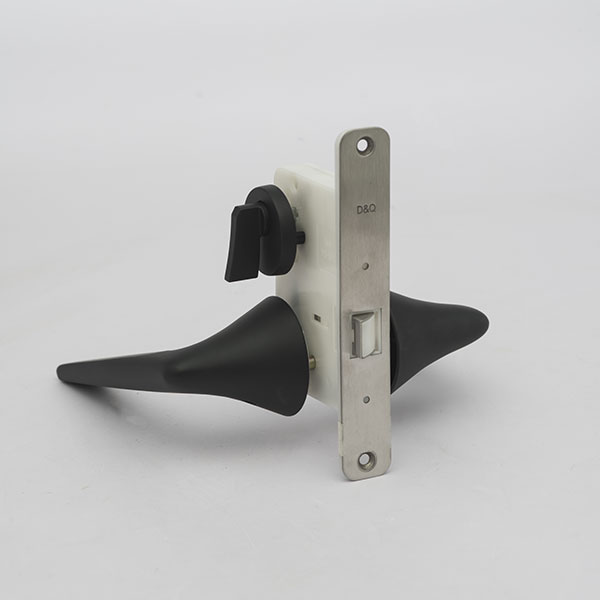

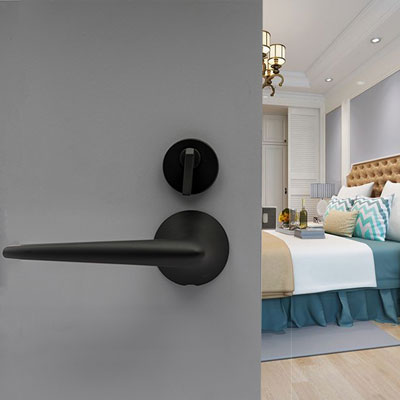

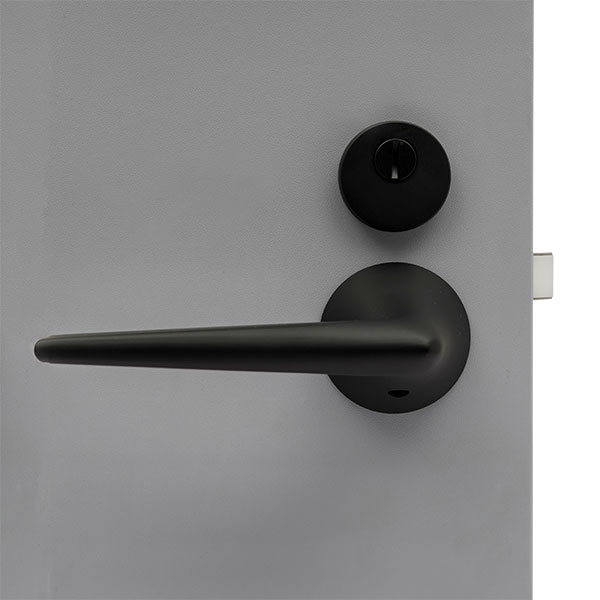

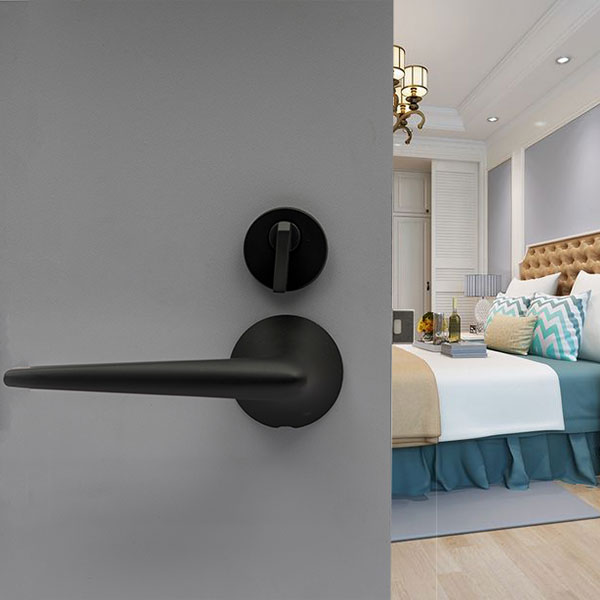

This type of mortise lever handle lock adopts a key less locking design. It could be locked with a knob from inside and unlocked with a coin from outside. When there is a state of emergency and the door is locked, it could be quickly unlocked from outside. The lock body shell is made of POM and the handle is made of aluminum alloy to ensure the firmness of the lock. The bolt is made of plastic POM and stainless steel which reduces the noise and achieves a better mute effect. The appearance is stylish and uses a sleek design. The surface treatment adopts Japanese advanced technology. Various tests are carried out in accordance with Japanese JIS standards to ensure the durability of the lock both from the appearance and structure.

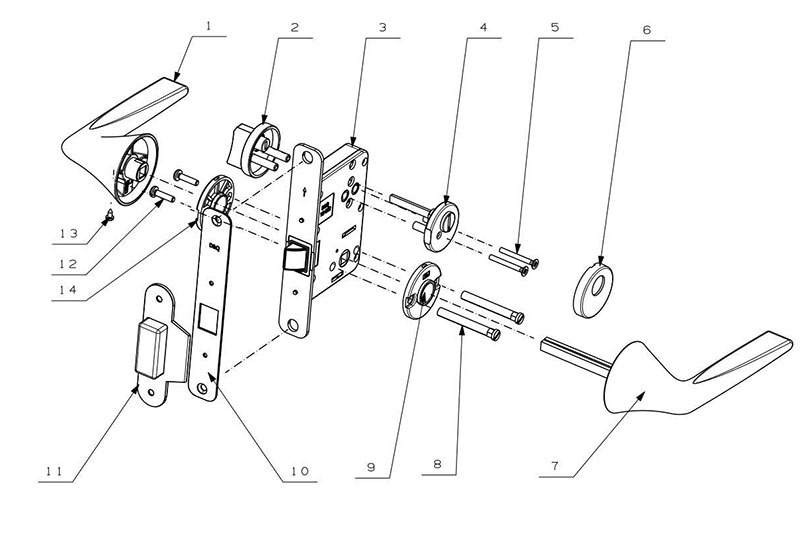

No | Name | No | Name |
1 | Inner Lever Handle | 8 | Connecting Screw Bolt |
2 | Inner Knob | 9 | Outer Holder for Lever Handle |
3 | Lock Body | 10 | Plate for Lock Body |
4 | Outer Knob | 11 | Striking Box |
5 | Screw for Knob | 12 | Screw |
6 | Outer Panel for Knob | 13 | Fastening Screw |
7 | Outer Lever Handle | 14 | Inner Holder for Lever Handle |
